PE1650

Overview

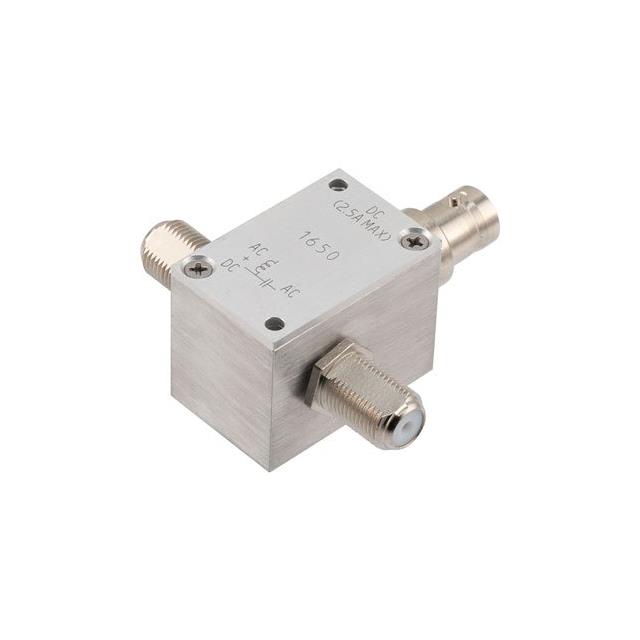

The Pasternack PE1650 is a broadband bias tee designed for RF and wireless applications. It operates within a frequency range of 10 MHz to 3 GHz and features Type F 75 Ohm connectors. The device is rated for a maximum voltage of 100 Volts and a maximum current of 2.5 Amps. Key electrical specifications include an insertion loss ranging from 0.8 to 3 dB, isolation of 40 dB, and a VSWR of 1.50:1 to 1.80:1. It functions as a three-port network to combine DC bias with RF signals.

Feature Summary

• Integrates DC power into RF signal paths without degrading signal integrity
• Supports high current loads up to 2.5 Amps for robust biasing
• Maintains stable performance across a wide temperature range

Applications

• Adjusting DC bias points in electrical components
• RF circuit testing and measurement setups
• Wireless communication system integration

Procurement Notes

Verify the specific connector type and impedance requirements against your system design before procurement. Confirm that the operating voltage and current limits align with your power supply capabilities. Ensure the frequency range covers your operational bandwidth. Check for RoHS compliance status if required by your manufacturing standards. Validate thermal management needs given the operational temperature range.

Selection Notes

Select this component when a 75 Ohm interface is required for biasing applications. Consider the insertion loss characteristics for sensitive signal chains. Evaluate the VSWR specifications to ensure minimal signal reflection in your setup. Compare the current rating against your load requirements to prevent overload. Assess the physical connector compatibility with existing cabling infrastructure.

Part Context

This bias tee belongs to Pasternack's portfolio of RF and wireless components. It serves as a passive network element for combining DC and RF energy. The device is engineered for general-purpose use in systems requiring precise bias control. Its design supports integration into various test and measurement environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.

FAQ

What is the maximum current rating for the PE1650?

The PE1650 is rated for a maximum current of 2.5 Amps.

Does the PE1650 affect the RF signal during operation?

It is designed to adjust the DC bias point without significantly affecting other components, maintaining specified isolation levels.
