PE1652

Overview

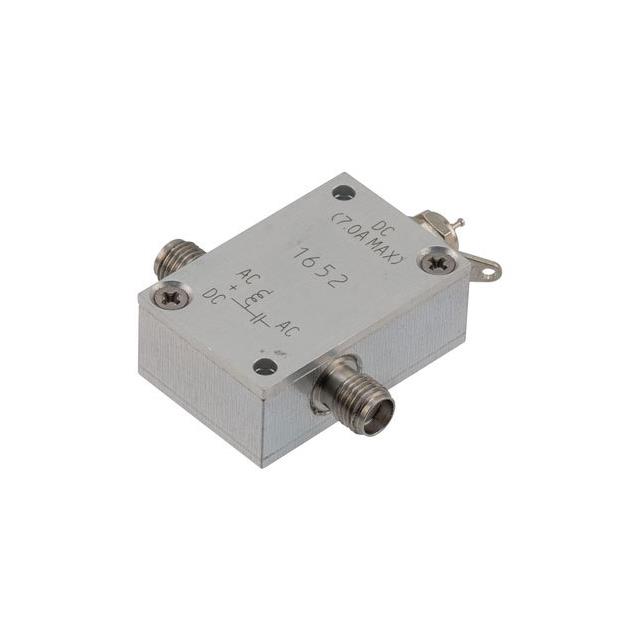

The Pasternack PE1652 is a high-current bias tee designed for RF applications. It operates within a frequency range of 1 GHz to 6 GHz and features SMA connectors. The device is rated for a maximum DC current of 7 Amps and a voltage of 100 Volts on the DC pin. It functions as a three-port network, allowing the injection or extraction of DC bias without affecting the RF signal path. The unit supports an operating temperature range from -55°C to 105°C.

Feature Summary

• Provides broadband DC biasing capability across the 1 GHz to 6 GHz frequency spectrum
• Supports high current loads up to 7 Amps with 100 Volt rating
• Utilizes SMA connectors for reliable RF and DC interface connections
• Operates reliably in extreme temperatures ranging from -55°C to 105°C

Applications

• Adjusting DC bias points of electrical components without signal interference
• RF circuit testing and characterization requiring simultaneous DC and AC signals
• Biasing active RF devices such as amplifiers or oscillators

Procurement Notes

Verify the specific datasheet version for exact mechanical dimensions and connector gender details before integration. Confirm that the 7 Amp current rating aligns with your system's power requirements. Ensure the SMA interface matches your existing cable infrastructure. Check for any RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this component when a broadband bias tee is required for frequencies between 1 GHz and 6 GHz. It is suitable for applications demanding high DC current handling capabilities up to 7 Amps. Consider the wide operating temperature range for environments subject to thermal extremes. Ensure the SMA connector type matches your system's port configuration.

Part Context

The PE1652 belongs to Pasternack's portfolio of RF misc ICs and modules, specifically categorized under signal conditioning components. It serves as a passive network element used to isolate DC and RF paths. This product is part of a series of bias tees designed for general-purpose RF applications requiring robust current handling.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify compatibility with existing SMA interfaces and ensure replacement units meet the same 1-6 GHz frequency and 7 Amp current specifications.

FAQ

What is the maximum DC current rating for the PE1652?

The PE1652 is rated for a maximum DC current of 7 Amps.

Does the PE1652 affect the RF signal during DC biasing?

No, it is designed to adjust the DC bias point without affecting other components or the RF signal path.

What is the operating temperature range of this bias tee?

The device operates within a temperature range of -55°C to 105°C.
