PE1653

Overview

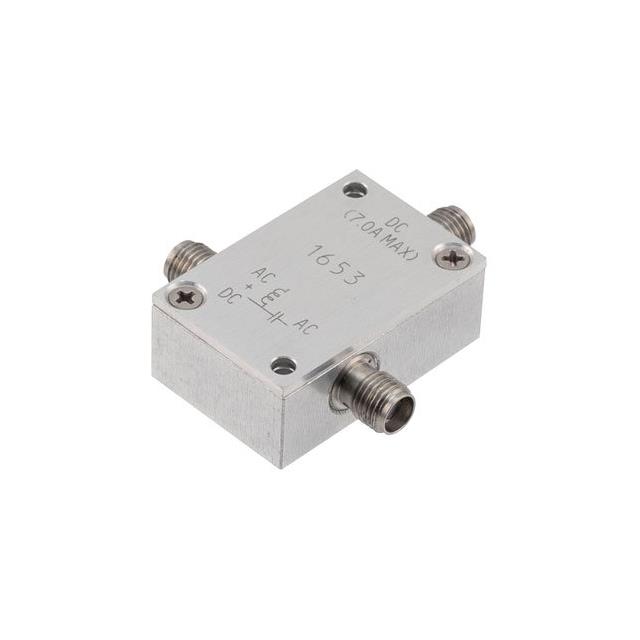

The Pasternack PE1653 is a high-current bias tee designed for RF signal conditioning applications. It operates within a frequency range of 1 GHz to 6 GHz and utilizes SMA connectors for interface compatibility. The component is rated to handle a maximum current of 7 Amps and supports a DC voltage rating of 100 Volts. This three-port network allows for the adjustment of DC bias points in electrical components without disrupting RF signals. The unit is engineered for reliability across an operating temperature range of -55°C to 105°C, ensuring stable performance in demanding environments.

Feature Summary

• Provides broadband signal conditioning from 1 GHz to 6 GHz
• Supports high current loads up to 7 Amps
• Enables DC bias injection via SMA interfaces

Applications

• RF circuit biasing
• Signal conditioning networks
• High-frequency component testing

Procurement Notes

Verify that the specific order matches the PE1653 designation to ensure correct SMA connector type and current ratings. Confirm that the application environment remains within the specified -55°C to 105°C operational limits. Ensure system requirements do not exceed the 7 Amp current or 100 Volt DC voltage specifications. Cross-reference datasheet details for mechanical dimensions and pinout configurations prior to integration.

Selection Notes

Select this component when a broadband solution between 1 GHz and 6 GHz is required for biasing RF circuits. The high current rating of 7 Amps makes it suitable for power-intensive applications compared to standard low-current alternatives. Verify that SMA connectivity aligns with existing system infrastructure. Consider the wide temperature range if the device will operate in extreme environmental conditions.

Part Context

This part belongs to the Pasternack series of general-purpose bias tees. These devices are categorized as signal conditioning components used to isolate DC and RF paths. The PE1653 specifically addresses needs for higher current handling capabilities within the microwave frequency spectrum, distinguishing it from lower-power variants in the manufacturer's portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
