PE19XC7006

Overview

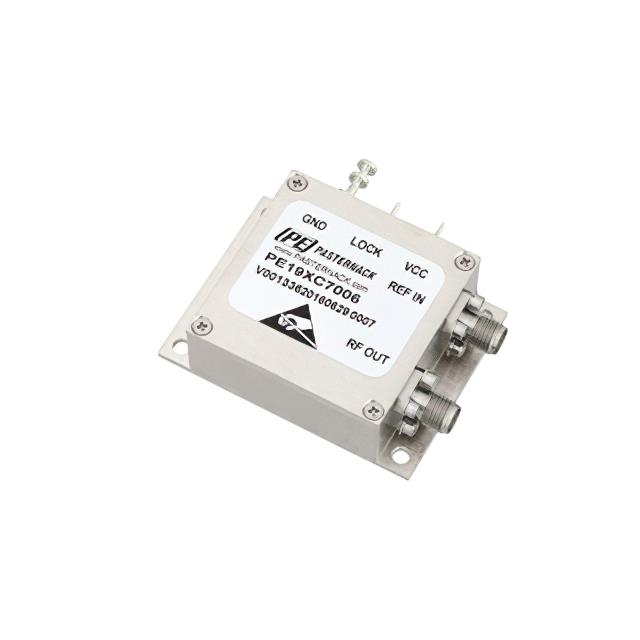

The Pasternack PE19XC7006 is a specialty phase-locked oscillator operating at a frequency of 1 GHz. It utilizes an external reference input of 100 MHz to maintain precise frequency stability. The device features a typical phase noise performance of -110 dBc/Hz, ensuring low spectral noise for sensitive applications. It employs SMA connectors for signal output and is designed for chassis mounting. This component serves as a general-purpose RF oscillator suitable for systems requiring stable high-frequency generation.

Feature Summary

• Phase-locked loop architecture for frequency stability
• External reference input capability
• Low phase noise performance
• Chassis mount design

Applications

• RF test and measurement equipment
• Communication systems requiring stable local oscillators
• General purpose RF signal generation

Procurement Notes

Verify the specific datasheet version and electrical characteristics directly with Pasternack or authorized distributors before procurement. Confirm that the SMA connector type and chassis mounting requirements align with your system design. Ensure the 100 MHz external reference input is compatible with your source signal. Check for any recent product lifecycle updates or obsolescence notices.

Selection Notes

Select this model when a 1 GHz output frequency with low phase noise is required. Consider the external reference requirement if internal crystal options are insufficient. Evaluate the chassis mounting form factor against available panel space. Compare phase noise specifications against other oscillators in the 1 GHz range to ensure compliance with system sensitivity requirements.

Part Context

The PE19XC7006 belongs to Pasternack's portfolio of specialty oscillators. It is part of the PE19 series, which includes various phase-locked oscillators with different frequencies and reference options. This specific model targets applications needing a stable 1 GHz signal derived from an external 100 MHz reference, distinguishing it from free-running or internally referenced variants.

Replacement Considerations

Check Pasternack documentation for direct replacements within the PE19 series. Verify compatibility of the SMA interface and mounting style. Ensure the replacement maintains the 1 GHz output and -110 dBc/Hz phase noise specification. Confirm the external reference input requirement matches the new component.
