PE19XC7009

Overview

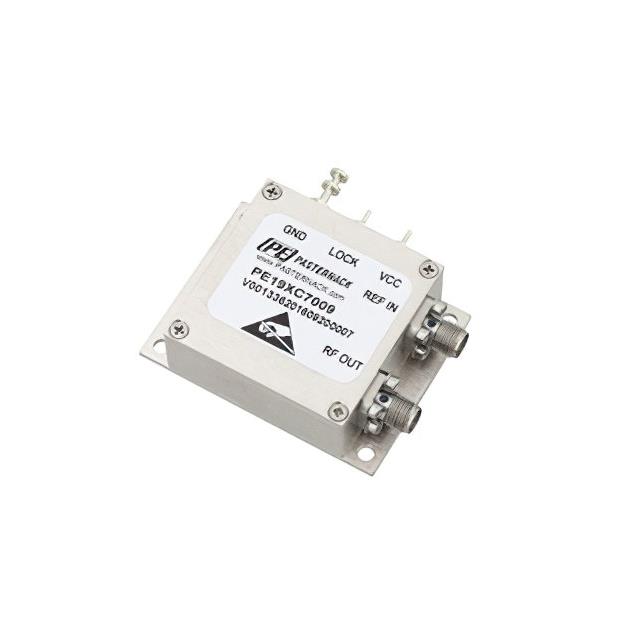

The PE19XC7009 is a general-purpose RF oscillator module manufactured by Pasternack, designed for applications requiring stable frequency generation up to 6 GHz. The device utilizes a phase-locked loop architecture and accepts an external reference frequency of 100 MHz via its SMA connector interface. It delivers a phase noise performance of -90 dBc/Hz, ensuring signal integrity in sensitive radio frequency systems. This compact module integrates essential oscillation components into a standardized form factor suitable for direct integration into test instrumentation and communication equipment.

Feature Summary

• Integrates phase-locked loop technology for precise frequency control
• Supports external 100 MHz reference input for synchronization
• Provides low phase noise output for high-fidelity signal generation
• Features SMA connectors for straightforward system integration

Applications

• General-purpose RF signal generation in test instrumentation
• Clock source provision for communication equipment
• Frequency synthesis in radar systems
• Reference oscillator modules for electronic testing setups

Procurement Notes

Verify the specific revision level and manufacturing date code upon receipt to ensure compliance with current quality standards. Confirm that the external reference source matches the required 100 MHz specification before operation. Inspect the SMA connectors for physical damage or contamination prior to installation. Ensure proper grounding and shielding are implemented during integration to maintain the specified -90 dBc/Hz phase noise performance. Review the official datasheet for detailed electrical characteristics and thermal management requirements.

Selection Notes

Select this model when a 6 GHz output capability with a 100 MHz external reference is required. Consider the -90 dBc/Hz phase noise metric for applications demanding high spectral purity. Evaluate the SMA interface compatibility against existing system cabling and connector types. Compare power consumption and form factor constraints against alternative oscillator solutions. Ensure the operating temperature range aligns with the intended environmental conditions of the deployment.

Part Context

This component belongs to Pasternack's portfolio of RF miscellaneous integrated circuits and modules. It serves as a specialized building block for engineers designing systems that require reliable, high-frequency signal sources. Unlike discrete components, this module offers a complete oscillation solution, simplifying design complexity. It complements other RF passive components such as attenuators and adapters within the manufacturer's ecosystem.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Engineers should verify pinout compatibility and electrical specifications if considering alternative manufacturers. Cross-reference the phase noise and frequency stability requirements with potential replacement options to ensure functional equivalence.
