PE19XP5001

Overview

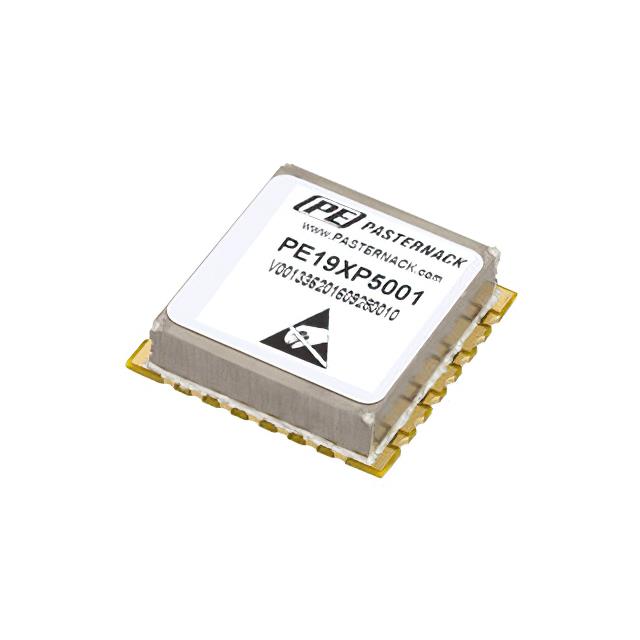

The PE19XP5001 is a surface mount phase-locked crystal oscillator manufactured by Pasternack. It operates at a frequency of 100 MHz and utilizes a 10 MHz external reference input. The device features a phase noise performance of -150 dBc/Hz. It is housed in a 0.9-inch package and requires a 5V supply voltage.

Feature Summary

• Surface mount technology for automated assembly
• Phase-locked loop architecture with external reference
• Low phase noise specification for signal integrity

Applications

• RF test and measurement equipment
• Wireless communication systems
• Precision timing applications

Procurement Notes

Verify the specific ordering suffix to ensure the correct package variant and reference configuration. Confirm that the 5V supply requirement aligns with the system power design. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the surface mount footprint matches the PCB layout specifications provided in the datasheet.

Selection Notes

Select this component when a stable 100 MHz output is required with low phase noise characteristics. The external 10 MHz reference capability allows for synchronization with other system clocks. Consider the 0.9-inch package size for board space constraints. Evaluate the thermal management requirements associated with the surface mount form factor.

Part Context

This part belongs to the specialty oscillators category within Pasternack's portfolio. It is designed as a general-purpose RF IC module. The product provides a fixed frequency output derived from the internal crystal and external reference source.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
