PE19XP5003

Overview

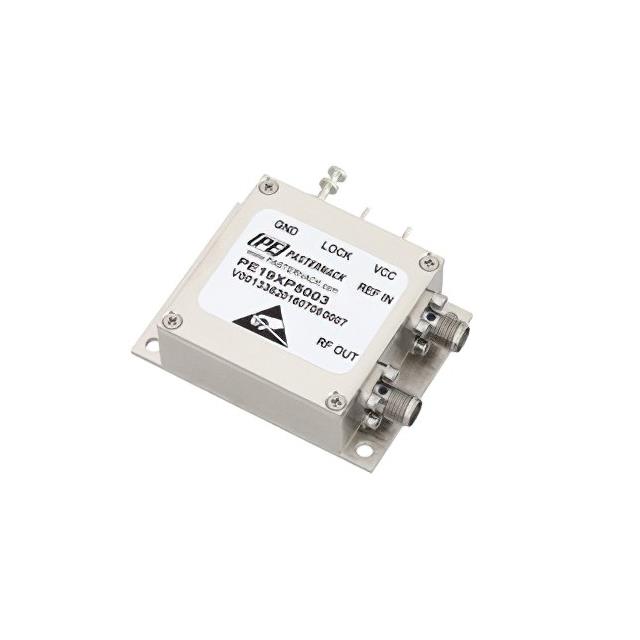

The PE19XP5003 is a phase-locked crystal oscillator manufactured by Pasternack. It operates at a fundamental frequency of 100 MHz and utilizes an external reference input of 10 MHz. The device features SMA connectors for signal output and reference input. Key performance specifications include a phase noise level of -150 dBc/Hz. The output power ranges from 5 to 9 dBm, while the reference power requirement is between 4 and 10 dBm. This component is classified as a general-purpose RF oscillator suitable for applications requiring stable frequency generation.

Feature Summary

• Phase-locked loop architecture utilizing a crystal oscillator core for high stability
• External 10 MHz reference input capability for synchronization
• Low phase noise performance characterized at -150 dBc/Hz
• Standard SMA connector interface for both signal and reference lines

Applications

• General purpose RF signal generation systems
• Test and measurement equipment requiring precise frequency references
• Communication systems utilizing 100 MHz carrier frequencies
• Electronic modules requiring low phase noise oscillators

Procurement Notes

Verify the specific datasheet version provided by Pasternack Enterprises Inc before integration. Confirm that the SMA connector types match the system requirements. Ensure the external reference source can provide the required 4 to 10 dBm power level at 10 MHz. Check for RoHS compliance documentation if environmental regulations apply to the final assembly. Validate the operating temperature range against the intended application environment.

Selection Notes

Select this component when a 100 MHz output with low phase noise is required. The external 10 MHz reference input allows for system synchronization needs. Consider the SMA interface compatibility with existing PCB traces or cabling. Evaluate the output power range of 5 to 9 dBm against downstream amplifier requirements. Compare phase noise specifications against other oscillators in the Phase-Locked Crystal Oscillators series.

Part Context

The PE19XP5003 belongs to the Phase-Locked Crystal Oscillators series produced by Pasternack Enterprises Inc. It is categorized under RF ICs and Modules, specifically within the Specialist Oscillators product line. The part is identified as a standard phase-locked loop oscillator designed for general-purpose RF applications. It shares the series characteristics of using external references for enhanced stability compared to free-running oscillators.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must consult Pasternack technical support for direct replacements. Verify pinout and electrical parameters carefully if considering alternative manufacturers. Ensure any replacement maintains the 100 MHz frequency and SMA connector configuration.
