Product Detailed Parameters
- Description：Surface Mount (SMT) 2 GHz Phase
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：RF Oscillator
- Frequency：2GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Surface Mount
- Package / Case：28-SMD, No Lead
- Supplier Device Package：28-SMD
- Grade：-
- Qualification：-
Download product information
Overview

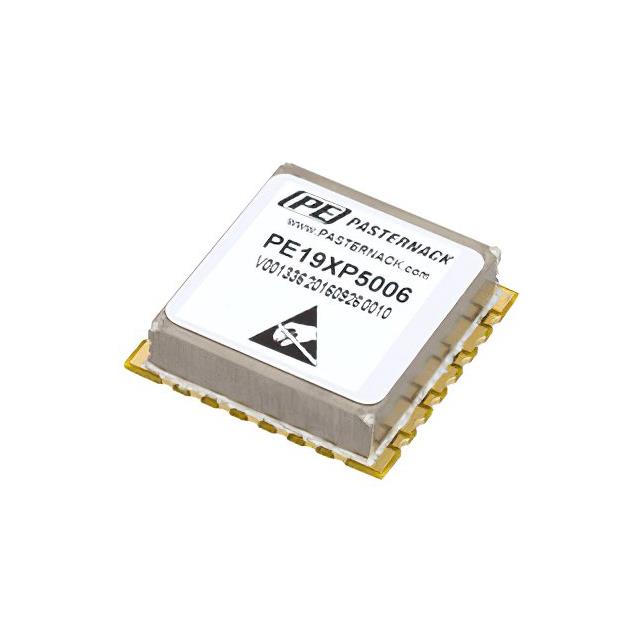

The PE19XP5006 is a surface-mount phase-locked oscillator manufactured by Pasternack. It operates at a frequency of 2 GHz and utilizes a 10 MHz external reference input. The device features a phase noise performance of -100 dBc/Hz, classifying it as a general-purpose RF oscillator. It is equipped with SMA connectors for interface connectivity. This component is designed for applications requiring stable signal generation within the specified frequency range.
Feature Summary
- Surface mount construction for automated assembly integration
- Phase-locked loop architecture ensuring frequency stability
- Supports 10 MHz external reference input for synchronization
Applications
- General purpose RF signal generation systems
- Communication equipment requiring 2 GHz local oscillation
- Test and measurement instrumentation modules
Procurement Notes
Verify that the specific revision of the datasheet matches the required phase noise specifications of -100 dBc/Hz. Confirm that the SMA connector type aligns with the system interface requirements. Ensure the surface mount package dimensions are compatible with the PCB footprint design before finalizing procurement orders.
Selection Notes
Select this model when a 2 GHz output frequency is required with a 10 MHz reference input capability. Consider the -100 dBc/Hz phase noise metric for applications sensitive to spectral purity. Evaluate the surface mount form factor against available board space constraints compared to through-hole alternatives in the same product family.
Part Context
This component belongs to the Pasternack series of phase-locked oscillators. It serves as a specialized RF module distinct from passive components like adapters or cables. The part number indicates its specific frequency and reference configuration within the manufacturer's active inventory catalog.
Replacement Considerations
Consult official documentation for direct substitutes within the PE19XP series. Verify compatibility of pinout and mechanical dimensions if considering alternative manufacturers. No public substitute part numbers are confirmed in available sources.
