PE19XR1002

Overview

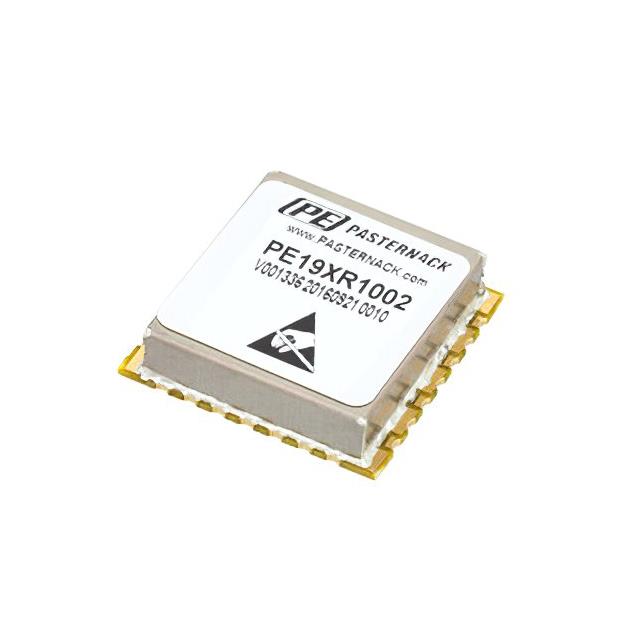

The PE19XR1002 is a surface-mount RF oscillator manufactured by Pasternack. It operates at a frequency of 100 MHz and utilizes an internal reference source. The device is designed for general-purpose applications and requires a 5V supply voltage. It features a phase noise specification of -155 dBc/Hz. The component is housed in a compact 0.9-inch package, suitable for integration into various electronic systems requiring stable clock signals.

Feature Summary

• Surface mount construction for automated assembly
• Internal reference source for stability
• Low phase noise performance

Applications

• General purpose RF systems
• Clock signal generation
• Electronic test equipment

Procurement Notes

Verify the specific datasheet version to confirm pinout compatibility and electrical tolerances before integration. Ensure the 5V supply requirement aligns with the target system design. Confirm the 0.9-inch package dimensions fit the PCB layout constraints. Check RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a 100 MHz reference is needed with low phase noise. The internal reference simplifies circuit design by removing external crystal requirements. The surface mount format aids in miniaturization. Verify that the 5V supply voltage matches available power rails in the application.

Part Context

This part belongs to Pasternack's line of RF oscillators and modules. It serves as a free-running reference oscillator. The product is categorized under general-purpose RF components. It is distinct from voltage references or connectors offered by the same manufacturer.

Replacement Considerations

No public substitute part numbers are documented.
