Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：18 ~ 30MHz
- Frequency - Center：24MHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0 V ~ 12 V
- 2nd Harmonic, Typ (dBc)：-13
- Icc Max：19mA
- Pushing (MHz/V)：0.03
- Power (dBm)：12 ±2
- Phase Noise Typ (dBc/Hz)：-120
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

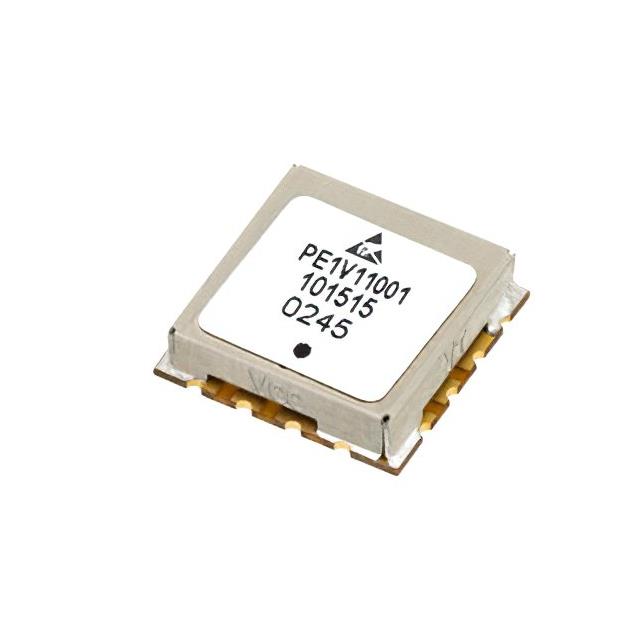

The PE1V11001 is a commercial surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 18 MHz to 30 MHz and delivers an output power of 22.387 mW. The device features a tuning sensitivity between 0.9 and 1.8, with a phase noise specification of -120 dBc/Hz. Designed for compact integration, it utilizes a 0.5-inch package suitable for surface mount technology applications.
Feature Summary
- Surface mount design for compact circuit board integration
- Voltage controlled operation across specified frequency range
- Low phase noise performance for signal clarity
Applications
- RF communication systems requiring stable local oscillation
- General-purpose RF signal generation circuits
- Microwave component testing setups
Procurement Notes
Verify the specific datasheet version and manufacturer documentation before procurement. Confirm that the surface mount package dimensions align with your PCB footprint requirements. Ensure supply chain sources provide authentic Pasternack components to guarantee the specified electrical parameters are met in final assembly.
Selection Notes
Select this component when a low-frequency VCO with surface mount capability is required. Consider the 18-30 MHz range and -120 dBc/Hz phase noise as primary constraints. Evaluate the 0.5-inch package size against available board space. Compare output power specifications against system sensitivity needs.
Part Context
This part belongs to Pasternack's portfolio of RF and microwave components. It complements their broader selection of cable assemblies, connectors, and passive components. The VCO serves as an active element within larger RF subsystems, providing necessary frequency generation capabilities for various electronic applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative manufacturers. Check pinout and electrical parameter alignment carefully before substitution.
