PE1V11003

Overview

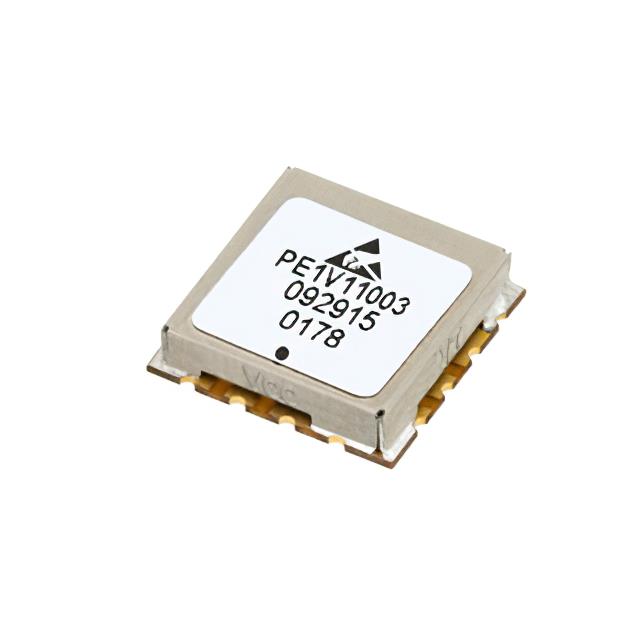

The PE1V11003 is a surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 30 MHz to 60 MHz and utilizes a voltage tuning range of 0 V to 15 V. The device features a typical phase noise performance of -119 dBc/Hz at an offset of 10 kHz from the carrier. It delivers an output power of 11 ±1 dBm and exhibits a typical second harmonic level of -14 dBc. The component is housed in a compact 0.5-inch package designed for commercial surface mount applications.

Feature Summary

• Surface mount construction for automated assembly integration
• Voltage-controlled frequency tuning across specified band
• Low phase noise performance for signal purity
• High reliability design for commercial environments

Applications

• Frequency synthesis systems
• Communication transceivers
• Test and measurement equipment
• Signal generation modules

Procurement Notes

Verify the specific datasheet version and manufacturer specifications before procurement, as component parameters may vary between production batches or document revisions. Confirm that the surface mount package dimensions align with your PCB footprint requirements. Ensure that the operating voltage range and thermal management capabilities meet your system design constraints. Cross-reference the part number with official Pasternack documentation to confirm current availability and compliance status prior to ordering.

Selection Notes

Select this component when a low-noise, surface-mount VCO is required for frequencies between 30 MHz and 60 MHz. Consider the -119 dBc/Hz phase noise specification for applications demanding high spectral purity. Evaluate the 0.5-inch package size against available board space. Ensure the 0 V to 15 V tuning voltage range is compatible with your control circuitry. Compare output power levels with downstream amplifier or mixer requirements to ensure proper signal integrity throughout the chain.

Part Context

The PE1V11003 belongs to Pasternack's series of voltage controlled oscillators designed for commercial surface mount applications. This product line focuses on providing reliable frequency generation solutions with optimized noise characteristics. The component represents a specialized RF solution for integrating stable oscillation into compact electronic designs without requiring through-hole mounting techniques.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
