PE1V11004

Overview

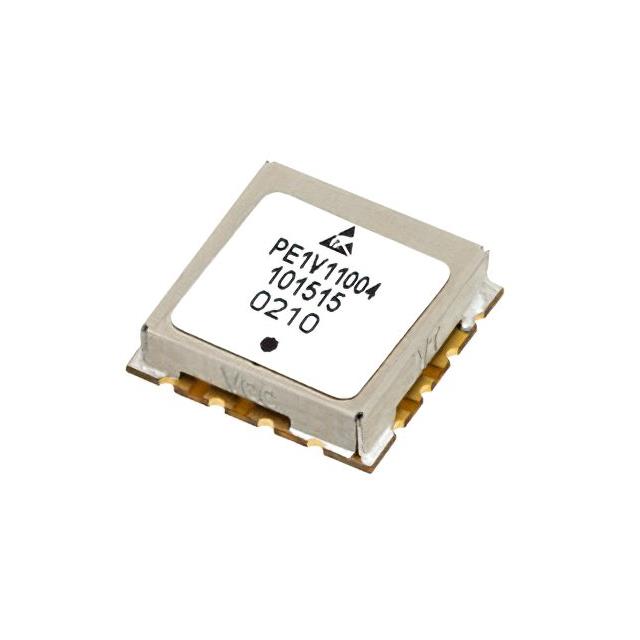

The PE1V11004 is a Surface Mount (SMT) Voltage Controlled Oscillator manufactured by Pasternack. It operates within a frequency range of 40 MHz to 80 MHz and delivers an output power of approximately 25.119 mW. The device features a tuning sensitivity of 2 to 4 MHz/V and exhibits a typical second harmonic level of -14 dBc. Designed for compact integration, it utilizes a 0.5-inch package format suitable for automated surface mount assembly processes.

Feature Summary

• Surface mount technology implementation for automated PCB assembly
• Voltage-controlled frequency tuning across the specified band
• Low phase noise performance characteristics

Applications

• Frequency synthesis circuits
• Local oscillator stages in receivers
• Signal generation modules

Procurement Notes

Verify the specific datasheet revision when sourcing this component, as manufacturer documentation may contain updated electrical specifications or pinout configurations. Confirm that the surface mount footprint matches the target PCB design requirements prior to procurement. Ensure that the voltage control input range aligns with the system's available control voltages to guarantee proper frequency operation.

Selection Notes

Select this model when a surface mount VCO is required for the 40 MHz to 80 MHz range. Consider the output power level and phase noise specifications against system sensitivity requirements. Evaluate the physical package dimensions to ensure compatibility with the available board space and assembly capabilities.

Part Context

This component belongs to Pasternack's Voltage Control Oscillators series, which provides various frequency ranges and package options. The PE1V11004 specifically addresses applications requiring surface mount integration within the HF band. It complements other RF components in signal processing chains where stable, tunable frequency sources are necessary.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
