PE1V11005

Overview

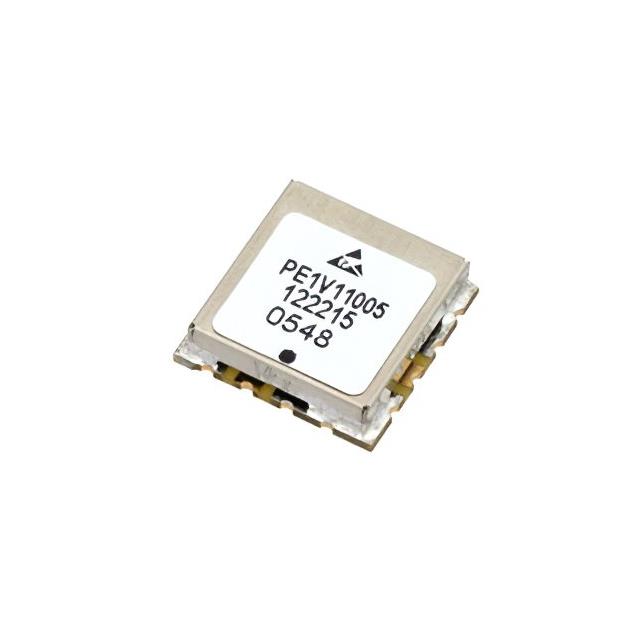

The PE1V11005 is a Surface Mount (SMT) Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 40 MHz to 100 MHz, with a center frequency of 70 MHz. The device requires a tuning voltage input between 0 V and 20 V and functions with a supply voltage of 15 V. It delivers an output power of +1 dBm and exhibits a typical second harmonic level of -14 dBc. The component features phase noise performance of -118 dBc/Hz and is housed in a 0.5 inch package.

Feature Summary

• Surface mount construction for automated assembly integration
• Voltage-controlled frequency tuning across specified RF range
• Low phase noise performance for signal integrity

Applications

• RF signal generation circuits
• Frequency synthesis systems
• Communication equipment local oscillators

Procurement Notes

Verify the specific datasheet version and electrical tolerances against current manufacturer documentation before integration. Confirm that the 0 V to 20 V tuning voltage range aligns with system control logic. Ensure PCB layout accommodates the 0.5 inch package dimensions and SMT requirements. Check for any recent lifecycle status updates or alternative part recommendations from Pasternack.

Selection Notes

Select this component when a wide tuning range from 40 MHz to 100 MHz is required in a surface mount format. Consider the +1 dBm output power and -118 dBc/Hz phase noise specifications for applications demanding stable RF sources. Evaluate the 15 V supply requirement against available power rails. Compare physical footprint constraints against the 0.5 inch package size.

Part Context

This Voltage Controlled Oscillator belongs to Pasternack's series of RF microwave components designed for precise frequency generation. It serves as a key active element in systems requiring tunable RF signals. The product line emphasizes surface mount technology to support modern manufacturing processes while maintaining high-performance RF characteristics.

Replacement Considerations

No public confirmed substitute part numbers are identified in the provided documentation.
