Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：50 ~ 100MHz
- Frequency - Center：75MHz
- Voltage - Supply：15V
- Tuning Voltage (VDC)：0 V ~ 20 V
- 2nd Harmonic, Typ (dBc)：-12
- Icc Max：22mA
- Pushing (MHz/V)：0.05
- Power (dBm)：12 ±2
- Phase Noise Typ (dBc/Hz)：-115
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

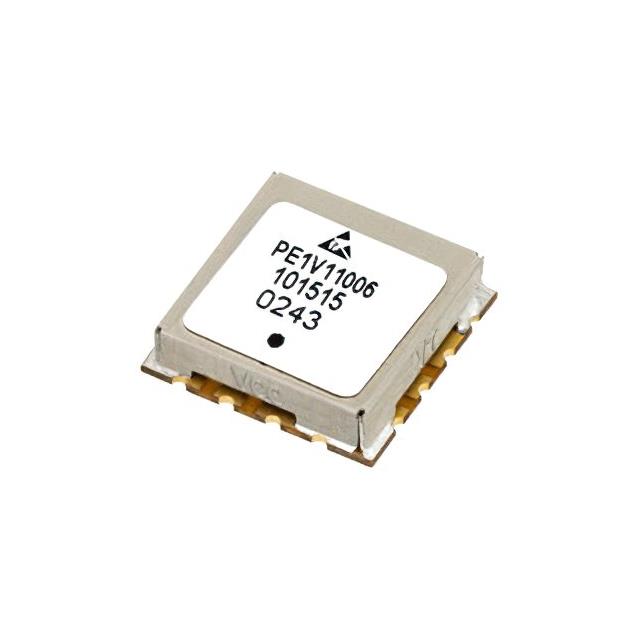

The PE1V11006 is a surface mount voltage controlled oscillator (VCO) manufactured by Pasternack Enterprises. It operates within a frequency range of 50 to 100 MHz, with a center frequency of 75 MHz. The device delivers an output power of 12 ±2 dBm and exhibits a typical second harmonic level of -12 dBc. Tuning sensitivity ranges from 2 to 5 MHz/V across a control voltage span of 0 to 20 V. It requires a supply voltage of 15 V and achieves a phase noise performance of -115 dBc/Hz.
Feature Summary
- Surface mount construction for compact integration
- Voltage-controlled frequency tuning capability
- Low phase noise performance
Applications
- RF signal generation
- Frequency synthesis systems
- Communication equipment local oscillators
Procurement Notes
Verify the specific ordering suffix, such as _16, against the required package type or configuration before purchase. Confirm that the voltage supply and control input levels match the system design requirements. Ensure the surface mount footprint aligns with the PCB layout specifications to guarantee proper installation and electrical connectivity.
Selection Notes
Select this component when a fixed center frequency near 75 MHz is required with voltage tunability. Consider the 12 dBm output power and -115 dBc/Hz phase noise for applications demanding moderate signal strength and low jitter. Evaluate the 50-100 MHz range against system bandwidth needs and ensure compatibility with the 0-20 V control interface.
Part Context
This part belongs to Pasternack's catalog of RF components, specifically categorized under Voltage Controlled Oscillators. It complements their broader portfolio of microwave parts, cable assemblies, and connectors. The PE1V11006 serves as a discrete active component for generating stable RF signals in various electronic systems requiring frequency agility.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and parameter compatibility if considering alternative VCOs from other manufacturers.
FAQ
What is the tuning sensitivity of the PE1V11006?
The tuning sensitivity ranges from 2 to 5 MHz/V.
What is the typical second harmonic level?
The typical second harmonic level is -12 dBc.
