PE1V11008

Overview

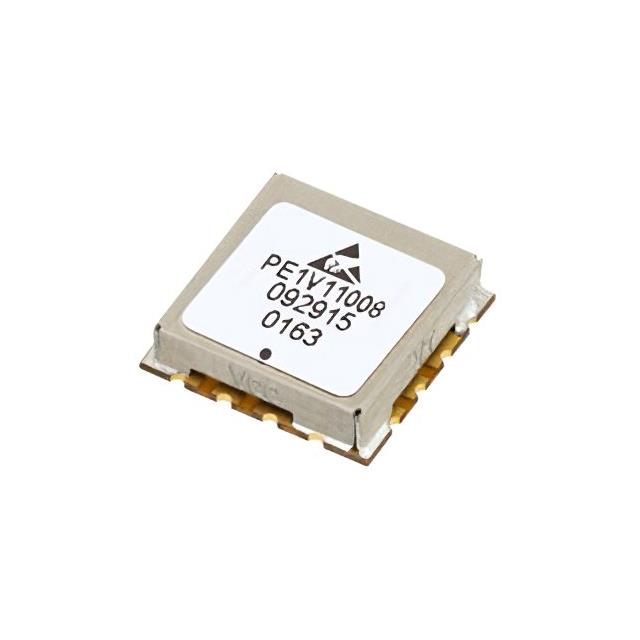

The Pasternack PE1V11008 is a commercial surface mount voltage controlled oscillator (VCO) designed for RF applications. It operates within a frequency range of 75 MHz to 150 MHz, featuring a center frequency of 112.5 MHz. The device utilizes a tuning voltage range of 0 V to 18 V and delivers an output power of approximately 11 dBm. Key performance specifications include a typical second harmonic level of -20 dBc and phase noise of -110 dBc/Hz. The component is housed in a compact 0.5-inch package suitable for integration into various electronic systems.

Feature Summary

• Surface mount construction for automated assembly
• Voltage controlled operation with defined tuning range
• Optimized phase noise performance for signal integrity

Applications

• RF communication systems
• Test and measurement equipment
• Signal generation modules

Procurement Notes

Verify the specific datasheet revision and ordering suffixes when purchasing to ensure compatibility with your design requirements. Confirm that the supplier provides original manufacturer documentation. Check return policies regarding defective items or wrong part orders before finalizing procurement. Ensure storage conditions align with surface mount component handling standards to prevent damage prior to installation.

Selection Notes

Select this component based on its 75-150 MHz operating range and 0.5-inch surface mount footprint. Consider the 0-18 V tuning voltage requirement for control circuit design. Evaluate the -110 dBc/Hz phase noise specification against system sensitivity needs. Ensure the 11 dBm output power meets downstream amplifier or mixer input requirements without excessive loading.

Part Context

This voltage controlled oscillator belongs to Pasternack's lineup of microwave and RF components. It complements their broader catalog of cable assemblies, connectors, and attenuators. The PE1V11008 serves as a core frequency generation element within larger RF subsystems, providing stable oscillation for modulation and demodulation processes in professional communication hardware.

Replacement Considerations

Consult official Pasternack documentation for direct substitute part numbers. Verify pinout compatibility and electrical parameter equivalence before swapping components. Ensure any alternative VCO matches the required surface mount package dimensions and tuning voltage characteristics.

FAQ

What is the tuning voltage range for the PE1V11008?

The device operates with a tuning voltage range of 0 V to 18 V.

Does the PE1V11008 use through-hole or surface mount packaging?

It utilizes a commercial surface mount (SMT) package with a 0.5-inch footprint.
