PE1V11009

$40.10

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:21603a5d2913 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：100 ~ 200MHz
Frequency - Center：150MHz
Voltage - Supply：15V
Tuning Voltage (VDC)：0 V ~ 18 V
2nd Harmonic, Typ (dBc)：-12
Icc Max：19mA
Pushing (MHz/V)：0.2
Power (dBm)：11 ±0.5
Phase Noise Typ (dBc/Hz)：-113
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

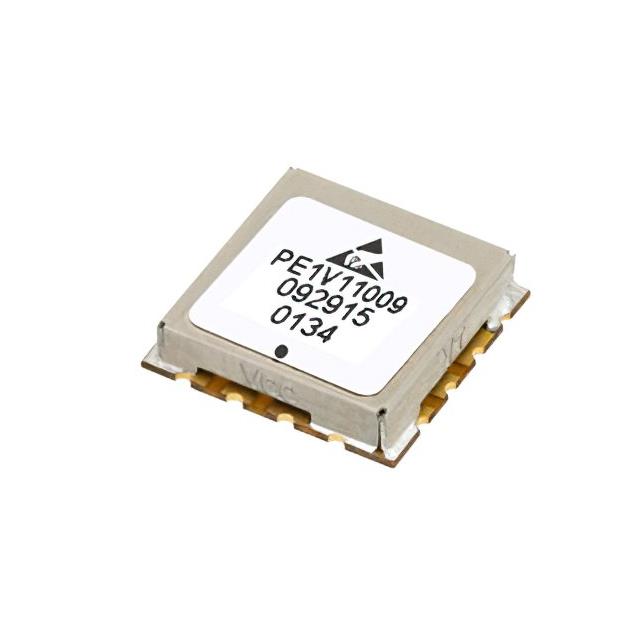

PE1V11009

Overview

The PE1V11009 is a commercial surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within the 50 MHz to 100 MHz frequency range and features a phase noise specification of -115 dBc/Hz. The component utilizes a 0.5 inch package format designed for surface mount technology applications.

Feature Summary

Surface mount construction for automated assembly integration
Voltage controlled operation across defined frequency band
Commercial grade performance specifications

Applications

RF signal generation circuits
Communication system local oscillators
Test and measurement equipment

Procurement Notes

Verify current availability status as distribution channels may vary. Confirm exact package dimensions and pinout compatibility with target PCB layout prior to ordering. Ensure supply chain sources provide authentic manufacturer documentation to guarantee component authenticity and traceability.

Selection Notes

Select this VCO when a surface mount solution is required for the 50-100 MHz range. Consider the -115 dBc/Hz phase noise metric against system sensitivity requirements. Evaluate thermal management needs based on the 0.5 inch package footprint and commercial operating temperature limits.

Part Context

This component belongs to Pasternack's Voltage Control Oscillators series. It serves as an active RF module providing tunable frequency output. The product line focuses on microwave and RF components for communication infrastructure and electronic testing environments.
