Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：200 ~ 400MHz
- Frequency - Center：300MHz
- Voltage - Supply：15V
- Tuning Voltage (VDC)：0 V ~ 20 V
- 2nd Harmonic, Typ (dBc)：-14
- Icc Max：20mA
- Pushing (MHz/V)：0.4
- Power (dBm)：11 ±1
- Phase Noise Typ (dBc/Hz)：-106
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

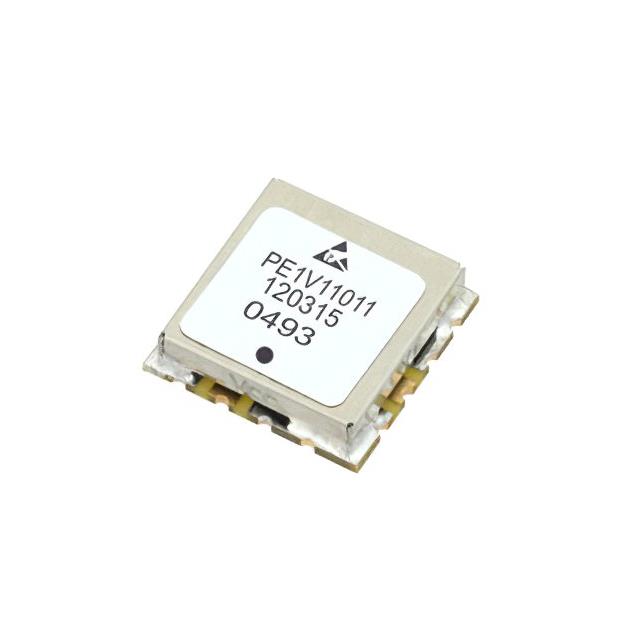

The PE1V11011 is a Surface Mount (SMT) Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 200 MHz to 400 MHz. The component features a phase noise specification of -106 dBc/Hz and utilizes a 0.5 inch package configuration.
Feature Summary
- Surface mount technology for automated assembly integration
- Voltage controlled oscillation across specified microwave bands
- Optimized phase noise performance for signal purity
Applications
- Frequency synthesizer systems
- Local oscillator circuits
- Wireless communication transceivers
Procurement Notes
Verify the specific datasheet version for tuning voltage ranges and supply current requirements before integration. Confirm surface mount footprint dimensions match the target PCB layout. Ensure environmental ratings align with operational temperature constraints. Cross-reference pinout assignments with schematic designs to prevent connection errors during manufacturing.
Selection Notes
Select this VCO when a 200 MHz to 400 MHz output is required with moderate phase noise specifications. The SMT package suits high-volume production environments. Evaluate thermal management needs based on the 0.5 inch package size. Compare against alternative models if tighter phase noise or different frequency coverage is necessary for the specific application design.
Part Context
This component belongs to Pasternack's Voltage Control Oscillators series, designed for reliable RF signal generation. It complements other passive and active components in communication subsystems. The product line emphasizes standardized packaging for ease of integration into various electronic systems requiring stable frequency sources.
Replacement Considerations
Consult official substitution lists for direct replacements. Verify electrical compatibility including frequency range and phase noise metrics. Ensure mechanical footprint matches existing board layouts. Check manufacturer recommendations for equivalent parts with similar performance characteristics.
