PE1V11012

Overview

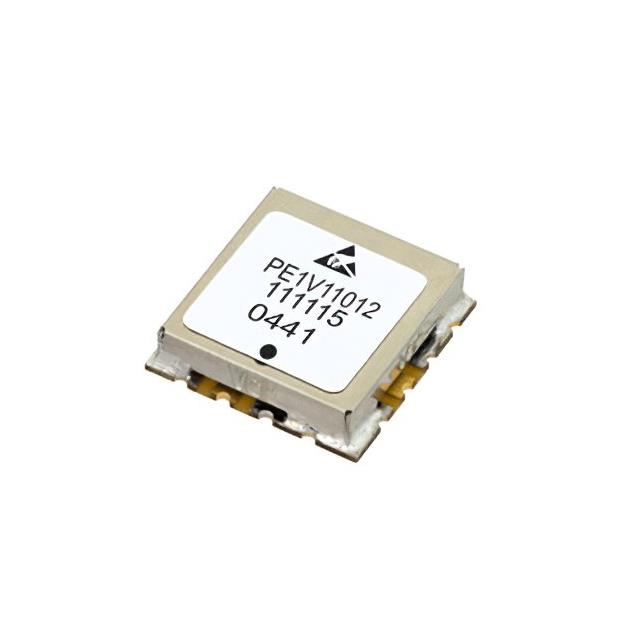

The PE1V11012 is a surface mount Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 300 MHz to 400 MHz, with a center frequency of 350 MHz. The device requires a supply voltage of 15 V and consumes power of 15.849 mW. Tuning sensitivity ranges from 10 to 18.

Feature Summary

• Surface mount construction for compact integration
• Voltage controlled oscillation capability
• Defined tuning sensitivity range

Applications

• RF signal generation circuits
• Communication systems requiring stable carrier frequencies
• Test and measurement equipment

Procurement Notes

Verify the active status and surface mount package compatibility before procurement. Confirm that the 15 V supply requirement aligns with system power rails. Ensure the 300-400 MHz frequency range meets specific application needs. Check for any RoHS compliance documentation if required by project specifications.

Selection Notes

Select this component when a surface mount VCO is needed for the 300-400 MHz band. Consider the 15 V supply constraint during power budget analysis. Evaluate the tuning sensitivity parameters against modulation requirements. Compare performance metrics with alternative SMT oscillators if space or voltage constraints differ.

Part Context

This part belongs to the Voltage Control Oscillators (VCO) series from Pasternack. It is categorized under Oscillators in RF interconnects. The manufacturer lists it as an active product suitable for various RF applications requiring precise frequency control via voltage input.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
