PE1V11017

Overview

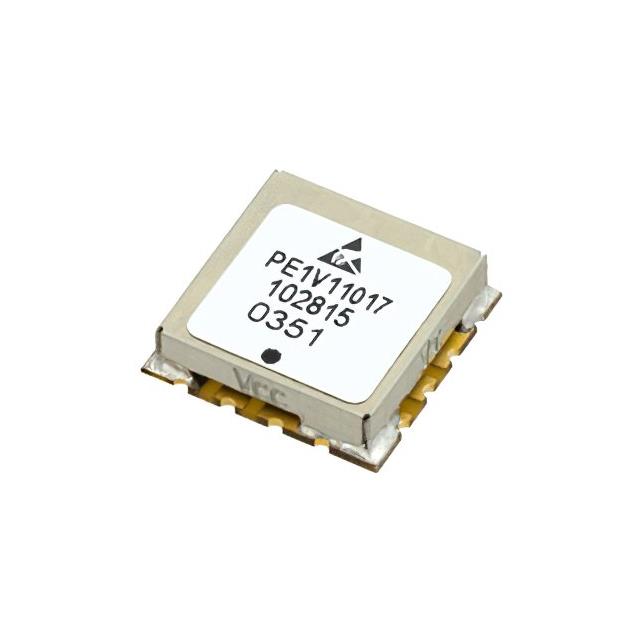

The PE1V11017 is a commercial surface mount voltage controlled oscillator manufactured by Pasternack. It operates within a frequency range of 800 MHz to 1.2 GHz. The device delivers an output power of approximately 39.811 mW. Tuning sensitivity is specified at 10 MHz/V. The component utilizes a 0.5-inch package format suitable for surface mount technology applications.

Feature Summary

• Surface mount construction for automated assembly integration
• Voltage controlled operation with defined tuning sensitivity
• Wideband frequency coverage from 800 MHz to 1.2 GHz

Applications

• RF signal generation circuits
• Frequency synthesis systems
• Wireless communication transceivers

Procurement Notes

Verify the exact datasheet version and electrical tolerances directly with Pasternack before procurement. Confirm that the 0.5-inch package dimensions align with your PCB footprint requirements. Ensure supply chain availability matches project timelines as distribution status may vary.

Selection Notes

Select this component when a surface mount VCO is required for frequencies between 800 MHz and 1.2 GHz. Consider the 10 MHz/V tuning sensitivity for control loop design. Evaluate the 39.811 mW output power against system gain requirements. Compare package size constraints with alternative oscillators if space is limited.

Part Context

This part belongs to Pasternack's Voltage Controlled Oscillator series designed for commercial applications. It complements other models like PE1V11006 which covers lower frequencies. The product line focuses on providing reliable RF sources in compact surface mount packages for various electronic systems.
