PE1V11018

$40.10

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:e0a0a2e2e75b Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：1.2 ~ 1.8GHz
Frequency - Center：1.5GHz
Voltage - Supply：15V
Tuning Voltage (VDC)：0 V ~ 20 V
2nd Harmonic, Typ (dBc)：-12
Icc Max：23mA
Pushing (MHz/V)：0.5
Power (dBm)：11 -1.5, 2.5
Phase Noise Typ (dBc/Hz)：-89
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

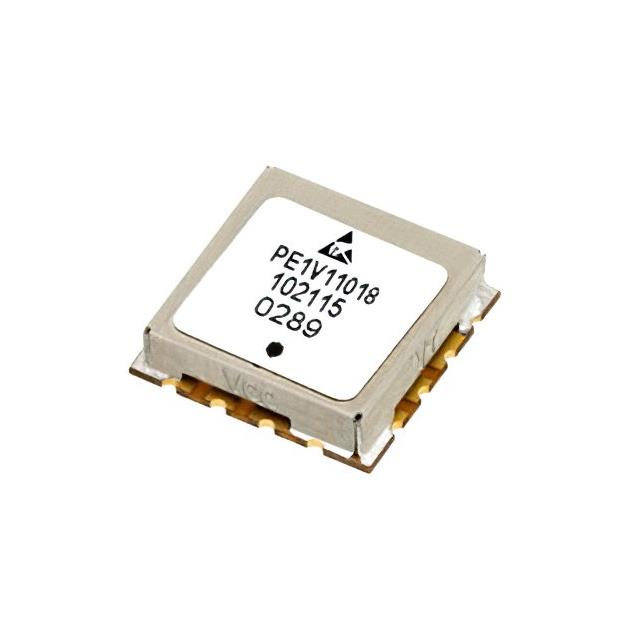

PE1V11018

Overview

The PE1V11018 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 1.2 GHz to 1.8 GHz, with a center frequency of 1.5 GHz. The component requires a supply voltage of 15V for operation.

Feature Summary

Voltage controlled oscillation capability
Defined center frequency operation

Applications

RF signal generation
Frequency synthesis systems

Procurement Notes

Verify the specific electrical parameters and pinout configuration against the official manufacturer datasheet before integration. Confirm that the 15V supply requirement aligns with the target system design constraints. Ensure compatibility with the intended frequency range specifications.

Selection Notes

Select this component when a VCO covering the 1.2 GHz to 1.8 GHz band is required. The 1.5 GHz center frequency suits applications needing stable RF output in this specific spectrum. Evaluate the 15V supply voltage against available power resources in the design.

Part Context

This part belongs to the Voltage Controlled Oscillators category from Pasternack. It provides tunable RF signals within a defined microwave frequency range. The device serves as a core frequency source for electronic systems requiring variable output frequencies.
