PE1V11021

Overview

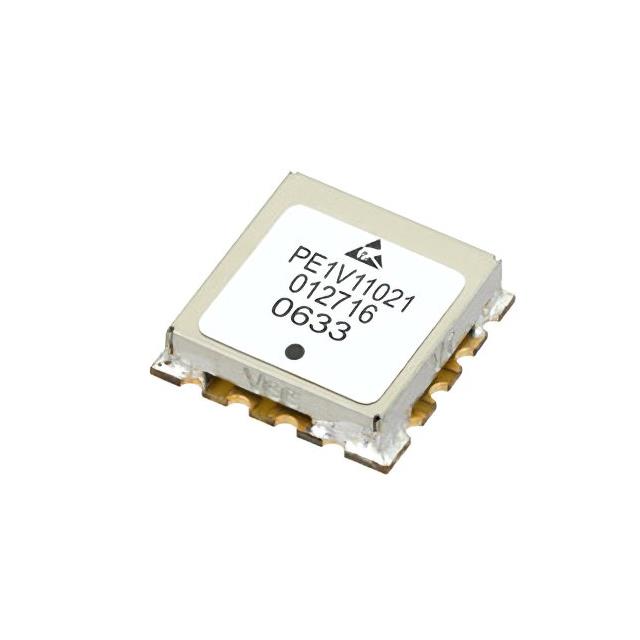

The PE1V11021 is a commercial surface mount voltage controlled oscillator manufactured by Pasternack. It features a center frequency of 2 GHz with an operational range spanning from 1.5 GHz to 2.5 GHz. The device utilizes a 0.5-inch SMT package and requires a supply voltage up to 15 V for tuning control. This component is designed for applications requiring precise frequency generation within the specified microwave band.

Feature Summary

• Surface mount construction for automated assembly integration
• Voltage-controlled frequency tuning capability
• Commercial grade reliability specifications

Applications

• Microwave signal generation systems
• Frequency synthesis circuits
• Communication equipment local oscillators

Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to procurement. Confirm that the 15 V supply requirement aligns with system power constraints. Ensure the surface mount footprint matches the target PCB design. Check current availability status as product lifecycles may change without notice.

Selection Notes

Select this model when a 2 GHz center frequency is required in a compact surface mount form factor. Consider the 1.5 to 2.5 GHz tuning range against system bandwidth needs. Evaluate the 15 V control voltage against available bias supplies. Compare physical size requirements against alternative through-hole or smaller SMT options.

Part Context

This component belongs to Pasternack's Voltage Controlled Oscillator series, specifically designed for commercial applications. It provides stable frequency output suitable for general-purpose microwave systems. The surface mount format supports high-volume manufacturing processes.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameter overlap before replacing. Ensure thermal and mechanical constraints are met by any substitute part.
