PE1V11022

Overview

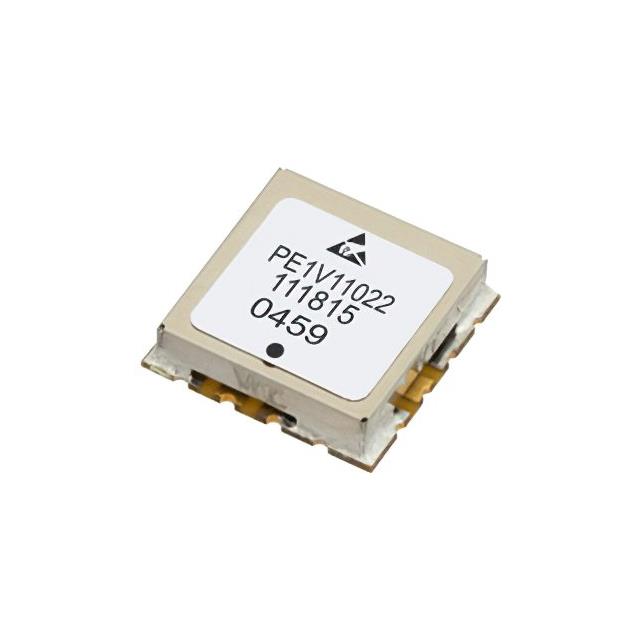

The PE1V11022 is a surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 2 GHz to 2.75 GHz, providing an output power of +7 dBm. The device features a tuning voltage range of 0.5 V to 10 V and exhibits a typical phase noise of -85 dBc/Hz at 10 kHz offset. The second harmonic is typically -12 dBc. This component utilizes a compact 0.5-inch package design suitable for integration into RF systems requiring precise frequency control.

Feature Summary

• Surface mount construction for automated assembly
• Voltage-controlled frequency tuning capability
• Compact physical footprint

Applications

• RF signal generation circuits
• Frequency synthesis systems
• Wireless communication transceivers

Procurement Notes

Verify the specific datasheet version and mechanical drawing dimensions prior to procurement. Confirm that the surface mount pad layout matches the target PCB design. Ensure the supply chain source provides authentic components from Pasternack Enterprises Inc to guarantee performance specifications are met.

Selection Notes

Select this model when a surface mount VCO is required for the 2 GHz to 2.75 GHz band. Consider the 0.5 V to 10 V tuning range compatibility with existing control circuitry. Evaluate the -85 dBc/Hz phase noise against system sensitivity requirements. Compare the +7 dBm output power against downstream amplifier needs.

Part Context

This component belongs to the Voltage Controlled Oscillators (VCO) series offered by Pasternack. It serves as a core frequency generation element in RF front-end designs. The product line focuses on providing reliable oscillation sources for various wireless applications.

Replacement Considerations

No public substitute part numbers are documented.
