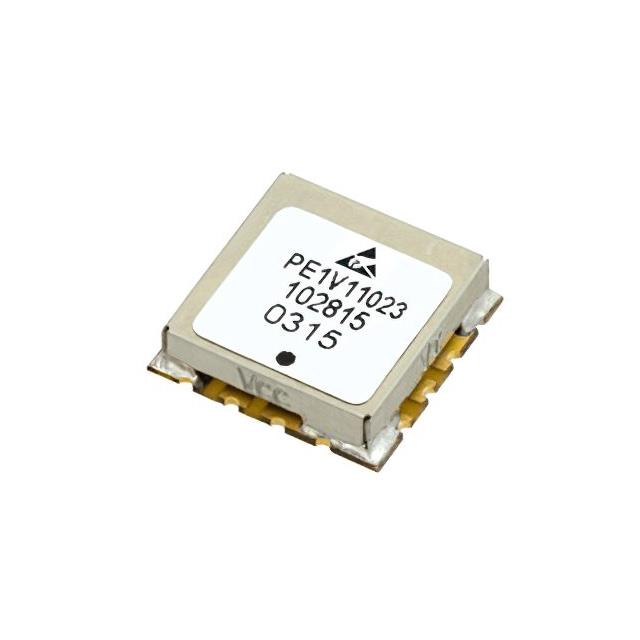

PE1V11023

$64.49

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:ed052323397a Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：2.57 ~ 3.3GHz
Frequency - Center：2.935GHz
Voltage - Supply：11V
Tuning Voltage (VDC)：0 V ~ 10 V
2nd Harmonic, Typ (dBc)：-15
Icc Max：18mA
Pushing (MHz/V)：-
Power (dBm)：-
Phase Noise Typ (dBc/Hz)：-82
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

PE1V11023

Overview

The PE1V11023 is a commercial surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 2.57 GHz to 3.3 GHz and features a center frequency of 2.935 GHz. The device utilizes a control voltage range of 0 V to 10 V for frequency adjustment. It exhibits a typical phase noise performance of -82 dBc/Hz at the specified operating conditions. The component is housed in a compact 0.5-inch package designed for surface mount technology integration.

Feature Summary

Surface mount design for automated PCB assembly
Voltage-controlled frequency tuning via external bias
Defined phase noise characteristics for signal purity

Applications

Wireless communication systems requiring stable local oscillators
Test and measurement equipment signal generation
Radar system frequency synthesis modules

Procurement Notes

Verify the specific datasheet revision and electrical parameters against the manufacturer's official documentation before procurement. Confirm that the surface mount footprint matches the target PCB layout requirements. Ensure the control voltage supply aligns with the 0 V to 10 V specification to prevent device damage or improper operation.

Selection Notes

Select this component when a surface mount VCO is required for frequencies between 2.57 GHz and 3.3 GHz. Consider the 0.5-inch package size for space-constrained designs. Evaluate the phase noise specification against system sensitivity requirements. Verify compatibility with the available control voltage range in the host circuit design.

Part Context

This part belongs to Pasternack's portfolio of microwave and RF components, specifically within the voltage controlled oscillator category. It complements their broader selection of signal conditioning and passive components. The product supports applications needing precise frequency generation in compact form factors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct replacements or cross-reference options based on specific electrical and mechanical constraints.
