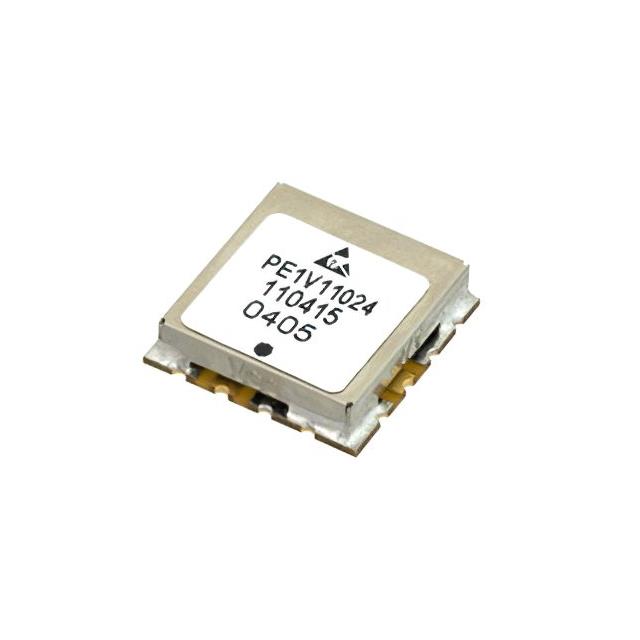

PE1V11024

$40.10

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:09dbcc97671f Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：3 ~ 3.5GHz
Frequency - Center：3.25GHz
Voltage - Supply：11V
Tuning Voltage (VDC)：0 V ~ 10 V
2nd Harmonic, Typ (dBc)：-16
Icc Max：22mA
Pushing (MHz/V)：2.5
Power (dBm)：10 -2, +1.5
Phase Noise Typ (dBc/Hz)：-81
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

PE1V11024

Overview

The PE1V11024 is a commercial surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 3 GHz to 3.5 GHz, with a center frequency of 3.25 GHz. The device requires an 11 V supply voltage and utilizes a compact 0.5-inch package suitable for SMT applications.

Feature Summary

Surface mount construction for automated assembly
Voltage controlled oscillation capability
Commercial grade operational specification

Applications

RF signal generation in communication systems
Local oscillator sources in receiver architectures
Test and measurement equipment internal modules

Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet revisions match design requirements. Check RoHS compliance status prior to integration. Validate supply chain documentation for traceability purposes.

Selection Notes

Evaluate thermal management needs for surface mount placement. Ensure PCB layout supports 0.5-inch footprint constraints. Verify 11 V supply stability meets oscillator phase noise specifications. Consider electromagnetic interference shielding requirements.

Part Context

This component belongs to Pasternack's Voltage Control Oscillators series. It serves as a frequency synthesis element in RF circuits. The product line focuses on compact, high-performance oscillators for modern electronic designs requiring precise frequency control.

Replacement Considerations

PE1V11006 offers similar VCO functionality but operates at lower frequencies from 50 MHz to 100 MHz. Cross-reference pinout compatibility and supply voltage requirements before substitution.
