PE1V11027

$40.10

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:77a402991e52 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：4.26 ~ 5GHz
Frequency - Center：4.63GHz
Voltage - Supply：11V
Tuning Voltage (VDC)：0 V ~ 10 V
2nd Harmonic, Typ (dBc)：-18
Icc Max：25mA
Pushing (MHz/V)：-
Power (dBm)：-
Phase Noise Typ (dBc/Hz)：-79
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

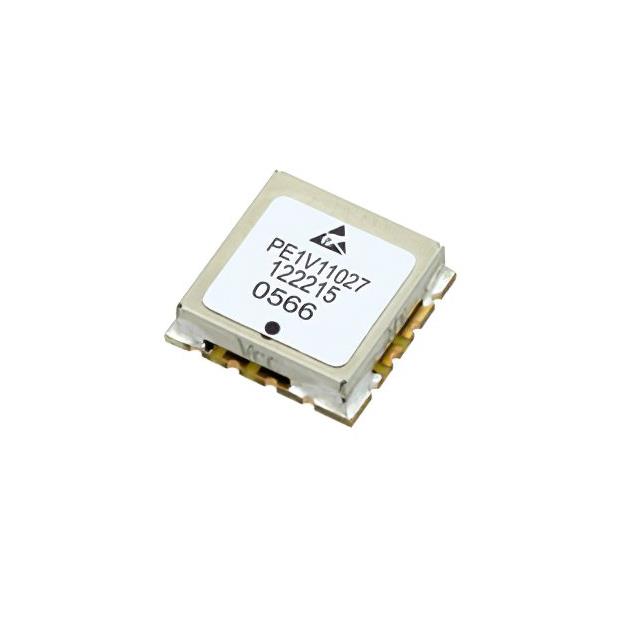

PE1V11027

Overview

The PE1V11027 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 4260 MHz to 5000 MHz, with a center frequency of 4.63 GHz. The device delivers an output power of approximately 5 mW and requires a supply voltage of 11 V. Frequency tuning is achieved via a control voltage input ranging from 1 Vdc to 10 Vdc. This component is classified as obsolete in the manufacturer's current product lineup.

Feature Summary

Voltage-controlled frequency generation capability
Defined center frequency operation at 4.63 GHz
Analog tuning voltage interface for frequency adjustment

Applications

RF signal generation circuits
Frequency synthesis systems
Communication equipment local oscillators

Procurement Notes

This component is officially listed as obsolete by the manufacturer. Procurement should focus on verifying the authenticity of remaining stock from authorized distributors or secondary market suppliers. Buyers must confirm the specific revision and testing status of available units, as production has ceased. Cross-reference with replacement models is recommended for new designs.

Selection Notes

Engineers selecting this part must account for its obsolete status and limited availability. The fixed frequency range and specific tuning voltage requirements limit flexibility compared to modern programmable alternatives. Verify that the 11 V supply requirement aligns with system power constraints before integration into legacy hardware maintenance projects.

Part Context

The PE1V11027 belongs to the Voltage Controlled Oscillators (VCO) category within Pasternack's historical portfolio. It serves as a discrete RF source component designed for applications requiring stable frequency generation over a defined band. As an obsolete item, it represents older design architectures compared to current integrated oscillator solutions.

Replacement Considerations

No public confirmed substitute part numbers are documented for this obsolete model. Designers should evaluate modern VCOs offering similar frequency ranges and tuning characteristics from current manufacturers to ensure long-term supply chain stability.
