PE1V12000

Overview

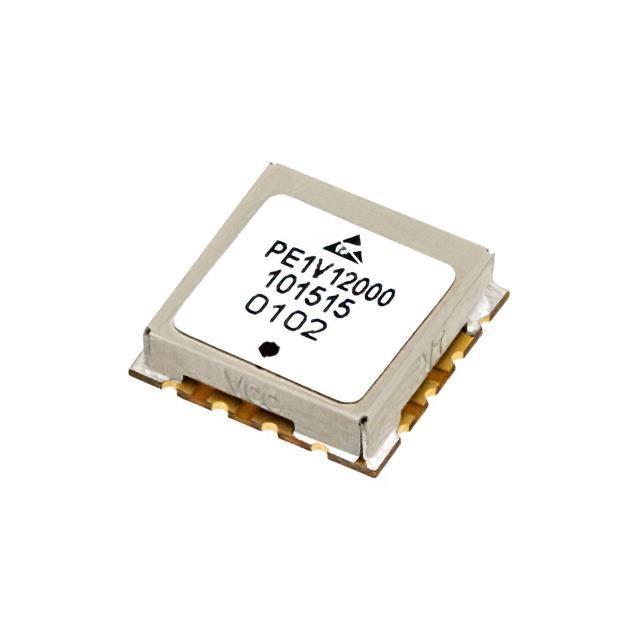

The PE1V12000 is a Surface Mount (SMT) Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 130 MHz to 175 MHz, with a center frequency of 152.5 MHz. The device features a phase noise specification of -125 dBc/Hz and requires a supply voltage of 5V. It is housed in a 0.5 inch package.

Feature Summary

• Surface mount technology for compact integration
• Voltage controlled oscillation capability
• Defined phase noise performance

Applications

• RF signal generation systems
• Communication equipment modules
• Test and measurement instrumentation

Procurement Notes

Verify the obsolete status of this component before procurement planning. Confirm availability through authorized distributors or surplus channels. Ensure compatibility with existing design specifications regarding frequency range and supply voltage requirements. Check for lead time constraints associated with end-of-life products.

Selection Notes

Select this VCO when a surface mount solution is required for the 130-175 MHz band. Consider the 5V supply requirement and 0.5 inch package dimensions during PCB layout. Evaluate phase noise needs against the -125 dBc/Hz specification. Verify that the center frequency of 152.5 MHz aligns with system tuning requirements.

Part Context

This component belongs to Pasternack's Voltage Control Oscillators series. It is categorized under Oscillators in the manufacturer's product lineup. The part is designed for commercial applications requiring stable RF signal generation in microwave and RF frequencies.

Replacement Considerations

No public confirmed substitute part numbers are available. Due to the obsolete status, alternative components must be selected based on matching electrical parameters such as frequency range, phase noise, and package type.
