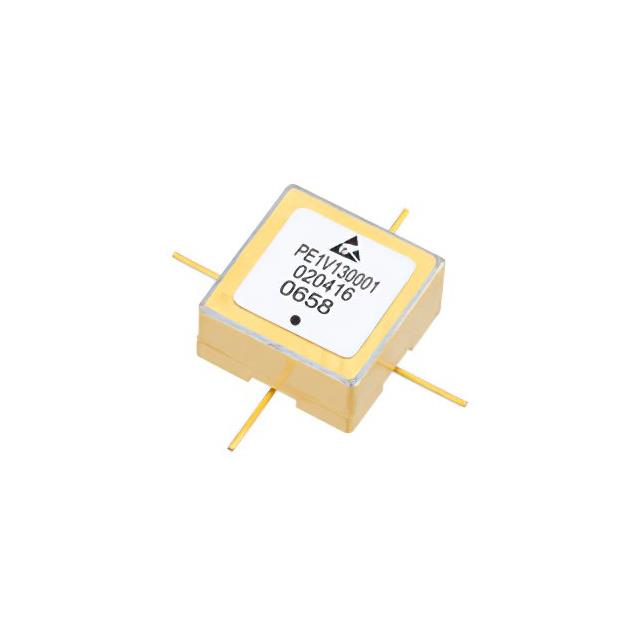

PE1V13001

$151.86

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:706ce04dcc32 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：18 ~ 30MHz
Frequency - Center：24MHz
Voltage - Supply：12V
Tuning Voltage (VDC)：0 V ~ 12 V
2nd Harmonic, Typ (dBc)：-13
Icc Max：19mA
Pushing (MHz/V)：0.03
Power (dBm)：12 -2, +1.5
Phase Noise Typ (dBc/Hz)：-120
Operating Temperature：-40°C ~ 85°C
Package / Case：4-SMD, Flat Leads
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.252" (6.40mm)

Download product information

PE1V13001

Overview

The Pasternack PE1V13001 is a surface-mount Voltage Controlled Oscillator (VCO) designed for high-reliability applications. It operates within a frequency range of 18 MHz to 30 MHz and features a phase noise specification of -140 dBc/Hz. The component utilizes a 0.5-inch hermetic package suitable for harsh environments. It meets MIL-STD-202 test conditions, including humidity, shock, and vibration resistance. The device supports an operating temperature range of -40°C to +85°C.

Feature Summary

Hermetic surface-mount construction for environmental sealing
Low phase noise performance at -140 dBc/Hz
Compliance with MIL-STD-202 reliability standards
Wide operating temperature capability

Applications

Military and aerospace communication systems
High-reliability radar subsystems
Secure satellite navigation receivers
Harsh environment signal generation

Procurement Notes

Verify the specific revision level and lot traceability documentation upon order confirmation. Ensure that the procurement channel provides valid military or industrial grade certification if required by the system design. Confirm that the hermetic seal integrity meets the specified MIL-STD requirements for the intended operational environment before final integration.

Selection Notes

Select this VCO when low phase noise is critical within the 18-30 MHz band. The hermetic SMT package is essential for applications requiring protection against moisture and mechanical stress. Consider the thermal management capabilities relative to the -40°C to +85°C operating range during PCB layout. Verify compatibility with existing control voltage interfaces for frequency tuning.

Part Context

The PE1V13001 belongs to Pasternack's Hi-REL series of microwave and RF components. This line focuses on providing robust solutions for defense and space industries where standard commercial parts fail under extreme conditions. The product complements other oscillators and modulators in the portfolio by offering stable frequency generation in compact form factors.
