Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：200 ~ 400MHz
- Frequency - Center：300MHz
- Voltage - Supply：15V
- Tuning Voltage (VDC)：0 V ~ 20 V
- 2nd Harmonic, Typ (dBc)：-14
- Icc Max：20mA
- Pushing (MHz/V)：0.4
- Power (dBm)：11 ±1
- Phase Noise Typ (dBc/Hz)：-106
- Operating Temperature：-40°C ~ 85°C
- Package / Case：4-SMD, Flat Leads
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.252" (6.40mm)
Download product information
Overview

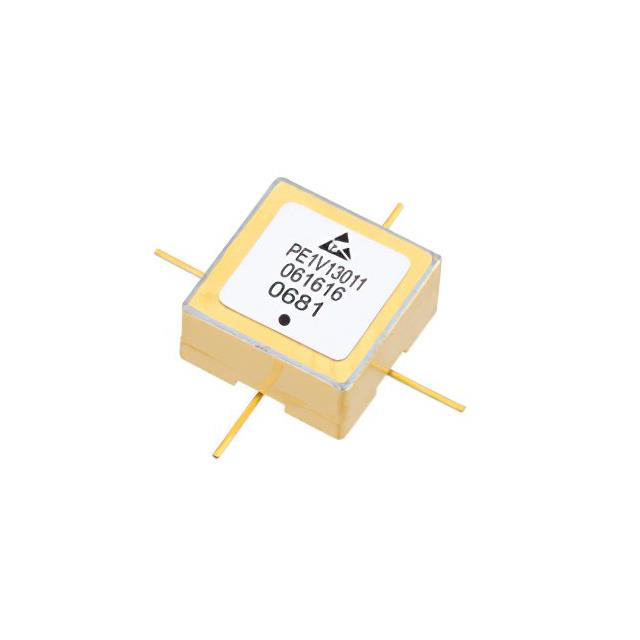

The PE1V13011 is a Surface Mount (SMT) Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 200 MHz to 400 MHz and features a phase noise specification of -126 dBc/Hz. The component utilizes a 0.5 inch Hi-REL hermetic package, designed for high-reliability applications requiring robust environmental protection and stable RF performance in surface mount configurations.
Feature Summary
- Surface mount technology implementation for automated assembly integration
- Hi-REL hermetic packaging ensuring environmental durability
- Voltage controlled oscillation capability across specified microwave bands
Applications
- Military and aerospace communication systems
- High-reliability radar transceivers
- Secure satellite uplink/downlink modules
Procurement Notes
Verify the specific datasheet version to confirm exact pinout compatibility and thermal requirements. Ensure that the procurement channel provides traceability documentation required for Hi-REL components. Cross-reference the hermetic seal specifications against mission-critical environmental standards before finalizing acquisition orders.
Selection Notes
Select this model when operation between 200 MHz and 400 MHz is required with stringent phase noise limits. The hermetic package dictates usage in harsh environments where standard commercial packages would fail. Evaluate board space constraints against the 0.5 inch form factor during initial design phases.
Part Context
This VCO belongs to Pasternack's specialized RF oscillator portfolio, distinct from their general cable assemblies. It targets niche markets requiring certified reliability rather than consumer-grade electronics. The product line emphasizes hermetic sealing as a key differentiator for defense-oriented signal generation needs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 200-400 MHz range, -126 dBc/Hz phase noise, and 0.5 inch hermetic package specifications exactly.
