PE1V13013

Overview

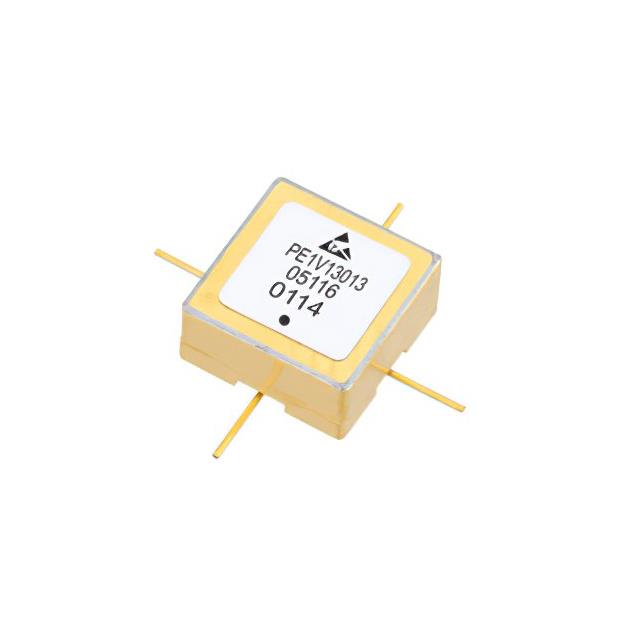

The PE1V13013 is a Surface Mount (SMT) Voltage Controlled Oscillator (VCO) manufactured by Pasternack Enterprises. It operates within a frequency range of 1.2 GHz to 1.8 GHz and delivers a phase noise performance of -89 dBc/Hz at a 10 kHz offset. The device utilizes a tuning voltage range from 0.5V to 12V with a typical supply voltage of +12V DC. It generates an output power level of +12.0 dBm, with second harmonic suppression typically rated at -13 dBc. The component is housed in a hermetically sealed rugged SMT package designed to meet MIL-STD-883 Method 1014 leak conditions.

Feature Summary

• Hermetically sealed rugged surface mount package construction
• Exceptional phase noise performance of -89 dBc/Hz at 10 kHz offset
• Compliance with MIL-STD-883 Method 1014 fine and gross leak standards
• RoHS compliant assembly suitable for harsh environmental conditions

Applications

• Phase Locked Loop systems
• Frequency Synthesizers
• Wireless Communications equipment
• SATCOM applications
• Military Electronic Systems

Procurement Notes

Verify the specific datasheet version when sourcing this component to ensure alignment with current manufacturing specifications. Confirm that the received units match the hermetic sealing requirements and RoHS compliance status documented in the official Pasternack technical data. Cross-reference the part number against authorized distributor lists to avoid counterfeit components, as reliability depends on strict adherence to the original manufacturer's quality controls and packaging integrity.

Selection Notes

Select the PE1V13013 when a high-reliability oscillator is required for the 1.2 GHz to 1.8 GHz band with stringent phase noise constraints. This model is appropriate for designs demanding hermetic sealing and resistance to shock, vibration, and humidity per MIL-STD-202 standards. Ensure the system architecture supports the specified 0.5V to 12V tuning voltage range and +12V DC supply configuration for optimal performance.

Part Context

This component belongs to Pasternack’s portfolio of high-reliability RF oscillators designed for demanding environments. It complements other VCO models like the PE1V13001, which targets lower frequencies, by providing solutions for higher microwave bands. The product line emphasizes ruggedness and precision, catering to sectors where standard commercial-grade oscillators may fail due to environmental stress or signal purity requirements.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users requiring alternative sources should consult the manufacturer directly for cross-reference information or verify compatibility with similar frequency-range VCOs from other qualified vendors.
