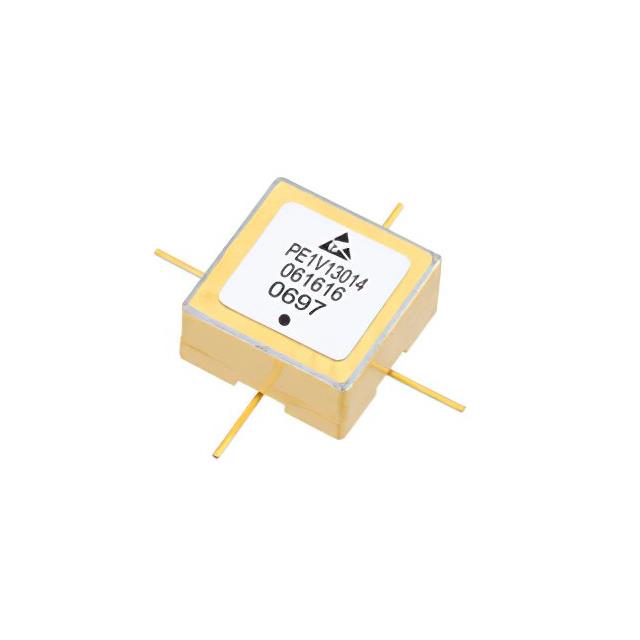

PE1V13014

$151.86

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:8732460c69a1 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：3 ~ 3.5GHz
Frequency - Center：3.25GHz
Voltage - Supply：11V
Tuning Voltage (VDC)：0 V ~ 10 V
2nd Harmonic, Typ (dBc)：-16
Icc Max：22mA
Pushing (MHz/V)：2.5
Power (dBm)：10 -2, +1.5
Phase Noise Typ (dBc/Hz)：-81
Operating Temperature：-40°C ~ 85°C
Package / Case：4-SMD, Flat Leads
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.252" (6.40mm)

Download product information

PE1V13014

Overview

The PE1V13014 is a surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 3 GHz to 3.5 GHz. The device features a phase noise specification of -81 dBc/Hz at a 10 kHz offset. It utilizes a hermetically sealed rugged SMT package designed to meet MIL-STD-883 Method 1014 fine and gross leak conditions. The unit is RoHS compliant and supports a tuning voltage range from 0.5V to 12V with a supply voltage of +12V.

Feature Summary

Hermetically sealed rugged surface mount package
Designed to meet MIL-STD-883 Method 1014 leak conditions
RoHS compliant construction
Operates over a temperature range of -40°C to +85°C

Applications

Phase Locked Loop systems
Frequency Synthesizers
Receivers
Local Oscillators
Wireless Communications

Procurement Notes

Verify the specific datasheet version for the PE1V13014 to confirm current manufacturing status and environmental compliance certifications. Ensure that the receiving facility has appropriate handling procedures for hermetically sealed surface mount components. Cross-reference the pinout configuration with the official electrical specifications prior to integration into the circuit design to prevent interface mismatches.

Selection Notes

Select this component when a high-reliability VCO is required for the 3 GHz to 3.5 GHz band. The choice is driven by the need for low phase noise performance in sensitive receiver or synthesizer applications. Consider the hermetic packaging requirement if the operating environment demands resistance to humidity, shock, and vibration as defined by MIL-STD-202 standards.

Part Context

This part belongs to Pasternack's line of high-reliability Voltage Controlled Oscillators. It shares the same hermetic SMT package architecture and military-grade testing protocols as other models in the series, such as the PE1V13001. The primary distinction lies in the operational frequency band, positioning this model for microwave applications rather than lower frequency functions.
