Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：1.57 ~ 1.85GHz
- Frequency - Center：1.71GHz
- Voltage - Supply：5V
- Tuning Voltage (VDC)：0 V ~ 4.5 V
- 2nd Harmonic, Typ (dBc)：-18
- Icc Max：16.5mA
- Pushing (MHz/V)：1.8
- Power (dBm)：5 ±1
- Phase Noise Typ (dBc/Hz)：-101
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

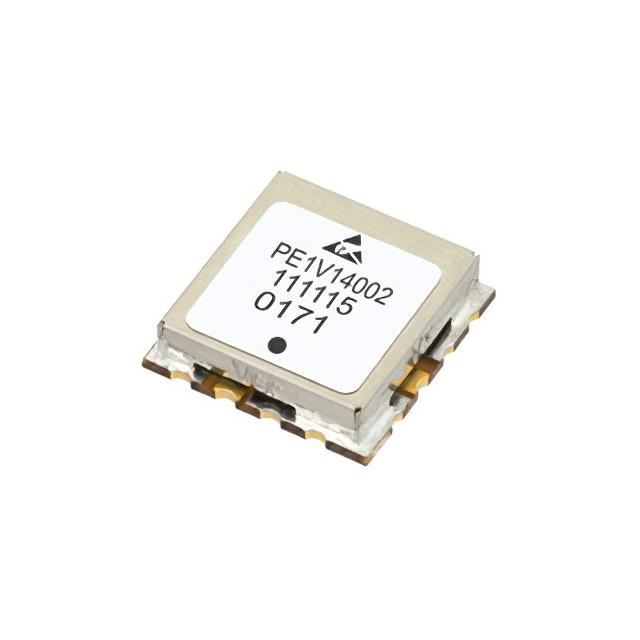

The PE1V14002 is a commercial surface mount voltage controlled oscillator (VCO) manufactured by Pasternack Enterprises. It operates within a frequency range of 1.57 GHz to 1.85 GHz, with a center frequency of 1.71 GHz. The device utilizes a 0 V to 4.5 V control voltage input and requires a 5 V power supply. Key performance specifications include a typical second harmonic level of -18 dBm and a phase noise of -101 dBc/Hz. The component is packaged in a compact 0.5-inch SMT form factor designed for integration into RF systems.
Feature Summary
- Surface mount design for automated PCB assembly
- Voltage-controlled frequency tuning capability
- Integrated phase noise optimization
Applications
- RF communication transceivers
- Frequency synthesis circuits
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet revision and ordering suffixes directly with Pasternack or authorized distributors to ensure compatibility with current manufacturing standards. Confirm that the required control voltage range and power supply specifications align with the target system design before procurement. Request official documentation to validate the active status and technical parameters of the component.
Selection Notes
Select this component when a surface mount VCO with a 1.57-1.85 GHz tuning range is required. Consider the -101 dBc/Hz phase noise specification for applications demanding signal purity. Ensure the PCB layout supports the 0.5-inch package dimensions and provides adequate thermal management for the 5 V operation.
Part Context
This part belongs to Pasternack's portfolio of microwave and RF components, specifically focusing on voltage controlled oscillators. It complements their broader selection of connectors, cable assemblies, and passive RF devices, providing designers with integrated active solutions for signal generation within the L-band frequency spectrum.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Designers should consult Pasternack engineering support for potential cross-reference options if this specific model becomes unavailable.
