Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：1.6 ~ 3.2GHz
- Frequency - Center：2.4GHz
- Voltage - Supply：5V
- Tuning Voltage (VDC)：0 V ~ 20 V
- 2nd Harmonic, Typ (dBc)：-14
- Icc Max：19mA
- Pushing (MHz/V)：4
- Power (dBm)：6 ±2
- Phase Noise Typ (dBc/Hz)：-89
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

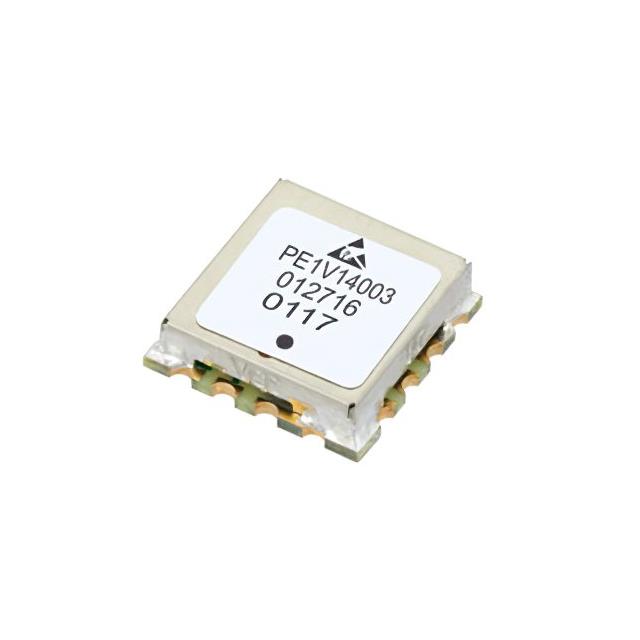

The PE1V14003 is a Surface Mount (SMT) Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 1.6 GHz to 3.2 GHz, with a typical center frequency of 2.4 GHz. The device features a phase noise specification of -89 dBc/Hz and delivers an output power of ±2 dBm. It utilizes a control voltage range of 0 V to 20 V and is housed in a compact 0.5-inch package.
Feature Summary
- Surface mount technology for automated assembly integration
- Voltage controlled operation across a wide tuning range
- Optimized phase noise performance for signal purity
Applications
- Wireless communication systems requiring stable local oscillators
- Test and measurement equipment needing precise frequency generation
- RF transceiver modules for data transmission applications
Procurement Notes
Verify the specific datasheet revision and pinout configuration before integration. Confirm that the supply voltage and control line requirements align with the system design. Ensure proper ESD handling procedures are followed during storage and installation due to the sensitive nature of the semiconductor components within the oscillator module.
Selection Notes
Select this component when a surface-mount VCO is required for frequencies between 1.6 GHz and 3.2 GHz. Consider the -89 dBc/Hz phase noise metric for applications demanding high spectral purity. Evaluate the 0-20 V control voltage range against available bias supplies. The compact 0.5-inch package size is suitable for space-constrained PCB layouts compared to larger through-hole alternatives.
Part Context
This part belongs to Pasternack's portfolio of RF and microwave products, which includes connectors, adapters, and cable assemblies. While Pasternack is widely known for passive RF interconnects, this specific model represents their active component offerings, specifically designed for generating stable microwave frequencies in modern electronic systems.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching frequency range, phase noise, output power, and package dimensions with other SMT VCO manufacturers.
