Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：2.1 ~ 2.3GHz
- Frequency - Center：2.2GHz
- Voltage - Supply：5V
- Tuning Voltage (VDC)：0 V ~ 4.5 V
- 2nd Harmonic, Typ (dBc)：-35
- Icc Max：18mA
- Pushing (MHz/V)：2.5
- Power (dBm)：4.5 ±1.5
- Phase Noise Typ (dBc/Hz)：-101
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

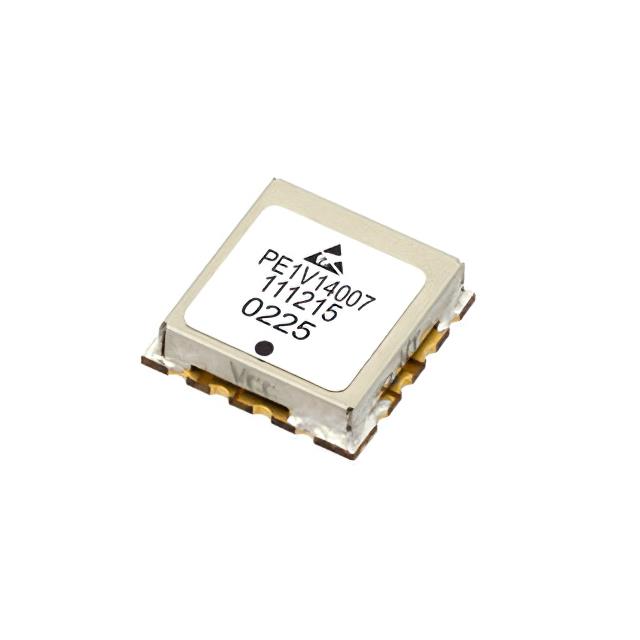

The Pasternack PE1V14007 is a surface mount voltage controlled oscillator (VCO) designed for RF applications. It operates within a frequency range of 2.1 GHz to 2.3 GHz, with a center frequency of 2.2 GHz. The device requires a 5V power supply and accepts a tuning voltage between 0 V and 4.5 V. It features a typical second harmonic level of -35 dBc and achieves a phase noise performance of -101 dBc/Hz. The component utilizes a compact 0.5-inch package suitable for commercial surface mount technology.
Feature Summary
- Surface mount voltage controlled oscillator design
- Operates from 2.1 GHz to 2.3 GHz
- Low phase noise performance
- Compact 0.5 inch package
Applications
- Communication systems signal transmission
- General-purpose RF applications
- RF module integration
Procurement Notes
Verify the exact part number against official Pasternack documentation to ensure compatibility with specific frequency and packaging requirements. Confirm that the 0.5-inch SMT package aligns with your PCB layout constraints. Check datasheet specifications for tuning voltage and power supply parameters before integration. Ensure sourcing channels provide authentic components to maintain signal integrity and performance standards in RF designs.
Selection Notes
Select this VCO when a fixed frequency range around 2.2 GHz is required with low phase noise characteristics. Consider the surface mount form factor for automated assembly processes. Evaluate the 5V supply requirement against available power rails. Compare phase noise metrics against system sensitivity needs. Verify interface compatibility with downstream RF stages.
Part Context
This component belongs to Pasternack's line of RF oscillators and microwave parts. It complements their broader portfolio of RF connectors, cables, and adapters. The PE1V14007 serves as a signal source within larger RF assemblies, supporting communication infrastructure and test equipment modules.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Pasternack resources for potential cross-reference options if alternative sourcing is necessary.
