PE1V31005

$499.50

Description：Voltage Controlled Oscillator (V
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:01f31c9b2cc4 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Voltage Controlled Oscillator (V
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：50 ~ 100MHz
Frequency - Center：75MHz
Voltage - Supply：15V
Tuning Voltage (VDC)：0.5 V ~ 20 V
2nd Harmonic, Typ (dBc)：-12
Icc Max：22mA
Pushing (MHz/V)：0.05
Power (dBm)：12 ±2
Phase Noise Typ (dBc/Hz)：-115
Operating Temperature：-40°C ~ 85°C
Package / Case：Module, SMA Connectors
Size / Dimension：0.949" L x 0.949" W (24.10mm x 24.10mm)
Height：0.285" (7.24mm)

Download product information

PE1V31005

Overview

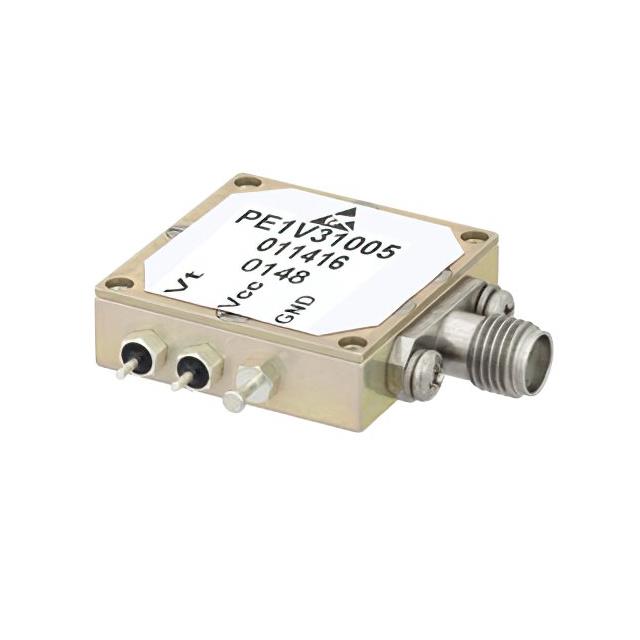

The PE1V31005 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack Enterprises, Inc. This component operates within a frequency range of 50 MHz to 100 MHz and features a phase noise specification of -115 dBc/Hz. The device utilizes SMA connectors for interface connectivity.

Feature Summary

Voltage controlled oscillator functionality
SMA connector interface

Applications

RF signal generation
Communication systems
General-purpose RF applications

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before procurement. Confirm that the SMA interface and specified frequency range align with system requirements. Ensure compliance with relevant technical standards for the intended application environment.

Selection Notes

Select this component when a VCO operating between 50 MHz and 100 MHz is required. Consider the -115 dBc/Hz phase noise performance relative to system sensitivity needs. Verify compatibility with SMA connector types used in the design.

Part Context

Pasternack Enterprises, Inc. is an ISO 9001:2008 certified global supplier of RF, microwave, and millimeter wave products. The company provides a wide range of components including connectors, adapters, and cable assemblies for communication systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for potential alternatives.
