PE1V31015

Overview

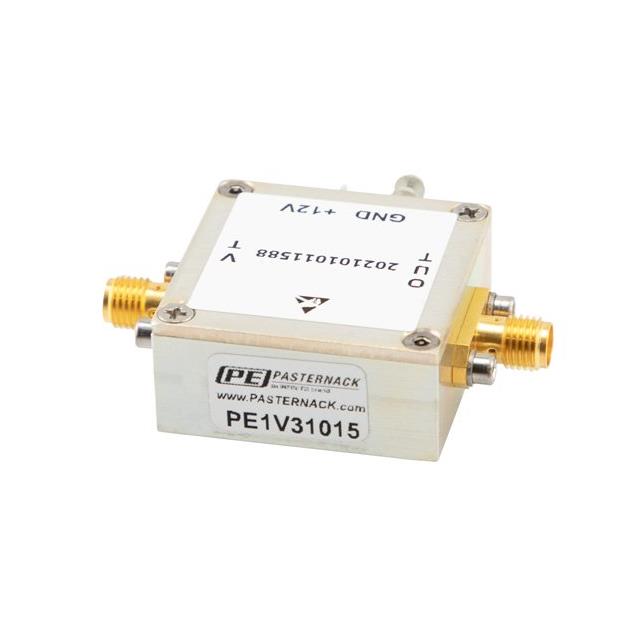

The PE1V31015 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 230 MHz to 290 MHz, with a center frequency of 260 MHz. The device delivers an output power of +2 dBm and exhibits a phase noise of -107 dBc/Hz. It utilizes an SMA connector for signal interface. The tuning voltage range spans from 0.5 V to 4.5 V. Typical second harmonic suppression is rated at -8.5 dBc.

Feature Summary

• Provides stable oscillation across the 230 MHz to 290 MHz band
• Features low phase noise performance for signal clarity
• Utilizes standard SMA connector for integration

Applications

• RF signal generation circuits
• Frequency synthesis systems
• Communication equipment local oscillators

Procurement Notes

Verify that the specific part number matches the required frequency range and output power specifications. Confirm interface compatibility with existing circuit designs. Ensure supply chain sources provide authentic components from Pasternack or authorized distributors to maintain performance integrity.

Selection Notes

Select this component when a fixed frequency range between 230 MHz and 290 MHz is required. Consider the +2 dBm output level and SMA interface for system matching. Evaluate phase noise requirements against the -107 dBc/Hz specification to ensure suitability for the intended application environment.

Part Context

This model belongs to Pasternack's portfolio of Voltage Controlled Oscillators. It is designed for RF and microwave applications requiring precise frequency control. The series includes various models covering different frequency bands and package types, serving diverse electronic system needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching exact electrical parameters and interface types.
