Product Detailed Parameters
- Description：Voltage Controlled Oscillator, 5
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：500 ~ 600MHz
- Frequency - Center：550MHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0.5 V ~ 4.5 V
- 2nd Harmonic, Typ (dBc)：-20
- Icc Max：20mA (Typ)
- Pushing (MHz/V)：45
- Power (dBm)：-2 ±3
- Phase Noise Typ (dBc/Hz)：-105
- Operating Temperature：-40°C ~ 85°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
- Height：0.568" (14.43mm)
Download product information
Overview

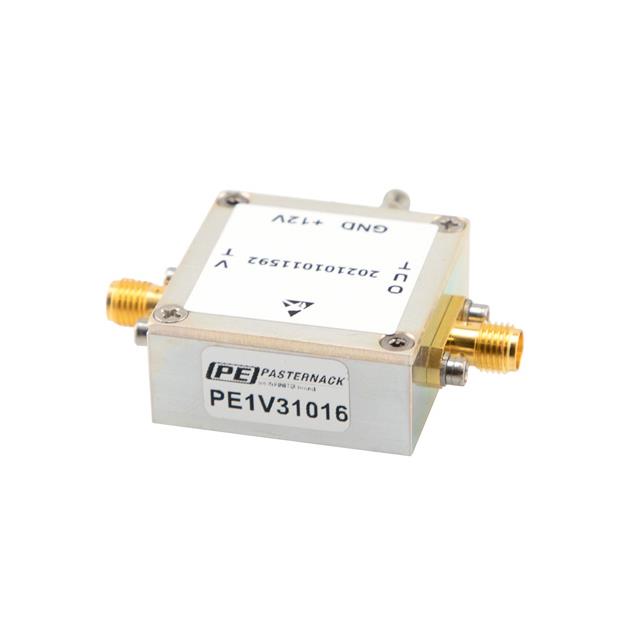

The PE1V31016 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack Enterprises. It operates within a frequency range of 620 MHz to 660 MHz. The device provides an output power of 0 dBm and achieves a phase noise specification of -110 dBc/Hz. It utilizes a tuning voltage range from 0.5 V to 4.5 V for frequency control. This component is designed for integration into RF systems requiring stable signal generation within the specified UHF band.
Feature Summary
- Provides precise frequency control via a defined DC voltage input range
- Delivers consistent output power with low phase noise characteristics
- Engineered for reliable operation in compact RF circuit applications
Applications
- Wireless communication transceivers
- Test and measurement instrumentation
- Signal generation modules
Procurement Notes
Verify the specific datasheet version for the PE1V31016 to confirm mechanical dimensions and pinout configurations prior to integration. Ensure that the supply voltage and tuning range requirements align with the system design specifications. Cross-reference the manufacturer's documentation for any updates regarding environmental ratings or compliance standards relevant to the deployment environment.
Selection Notes
Select the PE1V31016 when a fixed frequency range between 620 MHz and 660 MHz is required with minimal phase noise. Consider this component for designs where a 0 dBm output level is sufficient without additional amplification. Evaluate the 0.5 V to 4.5 V tuning requirement against available control circuitry capabilities to ensure proper interface compatibility.
Part Context
This part belongs to the Pasternack VCO product line, which focuses on providing stable oscillation solutions for various RF frequencies. The PE1V31016 specifically addresses needs in the lower UHF spectrum. It complements other Pasternack components such as attenuators and adapters in complete RF subsystem designs.
Replacement Considerations
Consult official Pasternack documentation for direct substitute part numbers. Verify frequency overlap and phase noise performance if considering alternative models.
