PE1V31017

Overview

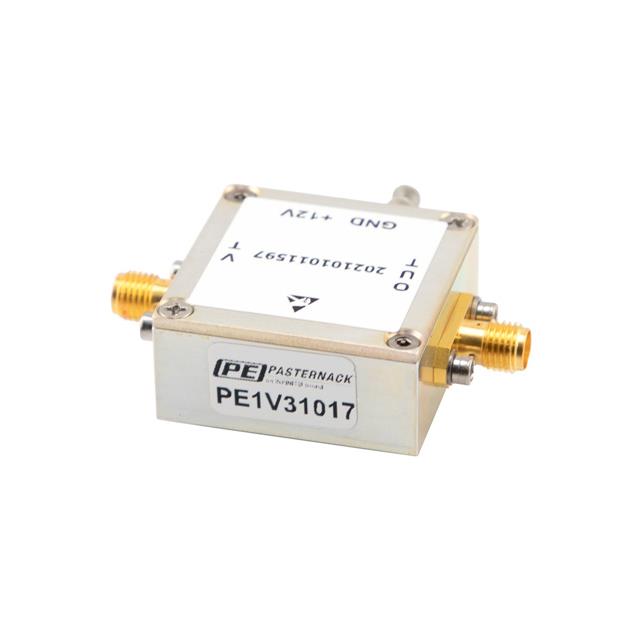

The PE1V31017 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 620 MHz to 660 MHz, with a center frequency of 640 MHz. The output power is specified at 0 dBm, equivalent to approximately 1 mW. The device utilizes a tuning voltage range of 0.5 V to 4.5 V. Key performance metrics include a phase noise of -110 dBc/Hz and a second harmonic typical value of -13 dBc.

Feature Summary

• Voltage-controlled operation across the 620 MHz to 660 MHz band
• Stable 0 dBm RF output power capability
• Integrated SMA interface for signal connection

Applications

• RF signal generation in communication systems
• Local oscillator sources in receiver architectures
• Test and measurement equipment requiring stable microwave frequencies

Procurement Notes

Verify the specific datasheet version for the PE1V31017 to confirm exact pinout configurations and absolute maximum ratings. Ensure that the required tuning voltage range aligns with available control circuitry. Cross-reference the SMA connector type and package dimensions against PCB layout constraints prior to finalizing procurement orders.

Selection Notes

Select this component when a fixed frequency range centered at 640 MHz is required. Consider the -110 dBc/Hz phase noise specification for applications sensitive to spectral purity. Evaluate the 0.5 V to 4.5 V tuning range compatibility with existing voltage control loops before integration into the design.

Part Context

This part belongs to Pasternack's portfolio of Voltage Controlled Oscillators designed for RF and microwave applications. The series typically offers various frequency bands and packaging options to suit different system requirements. The PE1V31017 specifically addresses needs in the sub-1 GHz spectrum with standard SMA connectivity.

Replacement Considerations

Consult official Pasternack documentation for direct cross-references. No public substitute part numbers are confirmed in the provided source material.
