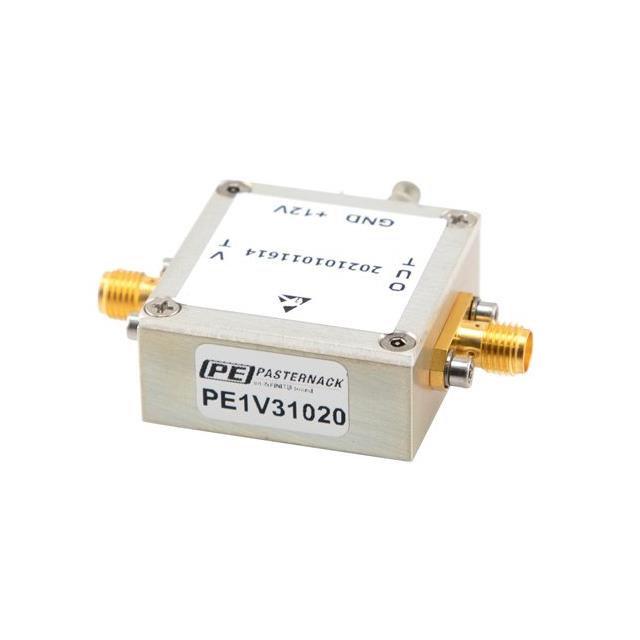

PE1V31020

Overview

The PE1V31020 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 1070 MHz to 1210 MHz, with a center frequency of 1.14 GHz. The device delivers an output power of +1.5 dBm and exhibits a phase noise performance of -109 dBc/Hz. It utilizes a tuning voltage range from 0.5 V to 4.5 V and features an SMA connector interface.

Feature Summary

• Provides stable oscillation across the specified microwave frequency band
• Delivers consistent output power levels for signal generation applications
• Features low phase noise characteristics for improved signal purity

Applications

• Frequency synthesis systems requiring precise control
• Communication equipment operating in the L-band spectrum
• Test and measurement instrumentation components

Procurement Notes

Verify component authenticity through authorized Pasternack channels or certified distributors. Confirm that the received unit matches the specific model designation and revision level documented in official datasheets. Inspect packaging integrity upon receipt to ensure protection against electrostatic discharge and physical damage during transit.

Selection Notes

Select this component when a fixed-frequency VCO within the 1.07 to 1.21 GHz range is required. Ensure system design accommodates the specified 0.5 V to 4.5 V tuning voltage window. Verify that the SMA interface aligns with existing board layout constraints and interconnect requirements.

Part Context

This oscillator belongs to the Pasternack Voltage Control Oscillators series. It serves as a dedicated signal source component for RF circuits. The product is categorized under general oscillators within the manufacturer's portfolio of microwave and radio frequency solutions.

Replacement Considerations

Consult official Pasternack documentation for direct substitute part numbers. Cross-reference specifications including frequency range, output power, and phase noise before implementing any alternative components.
