PE1V31022

Overview

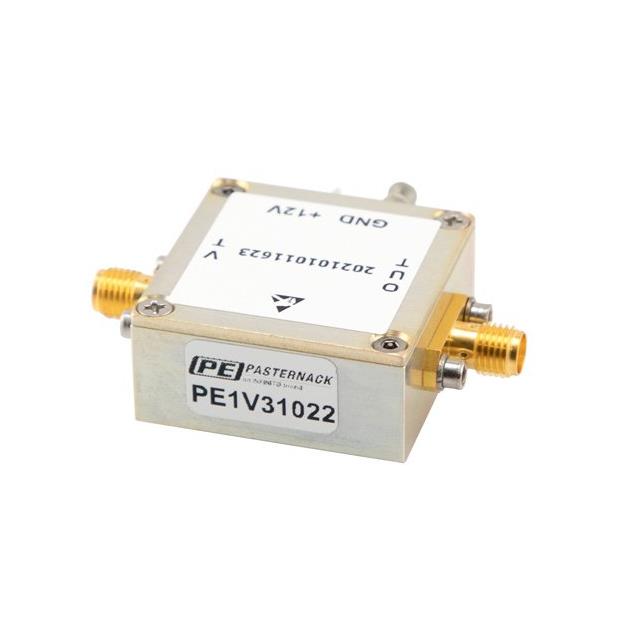

The PE1V31022 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 1550 MHz to 1850 MHz. The device provides an output power of +1.5 dBm and features a phase noise specification of -109 dBc/Hz. It utilizes a tuning voltage range of 0.5 V to 4.5 V. The component is equipped with an SMA connector for signal interfacing.

Feature Summary

• Voltage-controlled operation across a defined microwave frequency band
• Integrated SMA interface for direct circuit connection
• Designed for applications requiring stable phase noise performance

Applications

• Microwave communication systems
• Test and measurement instrumentation
• Signal generation modules

Procurement Notes

Verify current availability status as the product may be discontinued or subject to restricted supply conditions. Confirm that the SMA connector type and tuning voltage specifications align with system requirements before procurement. Check for updated datasheets to ensure compliance with current manufacturing standards.

Selection Notes

Select this component when a fixed frequency range between 1550 MHz and 1850 MHz is required. Ensure the system can accommodate the specified tuning voltage window. Consider the output power level and phase noise characteristics relative to system sensitivity requirements.

Part Context

This part belongs to Pasternack's Voltage Control Oscillators series. It is categorized under oscillators in electronic component databases. The module is typically supplied in bulk packaging. It represents a commercial-grade solution for microwave frequency synthesis tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official manufacturer channels for potential obsolescence management or equivalent replacement recommendations.
