PE1V31023

Overview

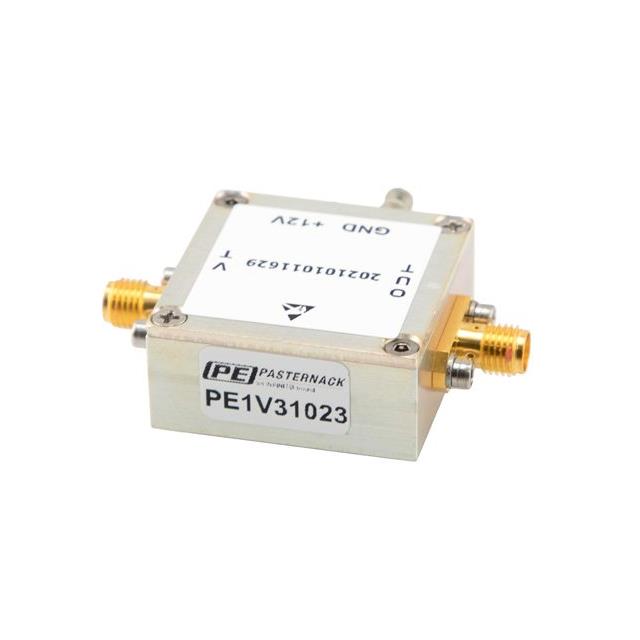

The PE1V31023 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack Enterprises Inc. It operates within a frequency range of 1700 MHz to 1850 MHz, providing an output power of 0 dBm. The device features a tuning voltage range of 0.5 V to 4.5 V and exhibits a phase noise performance of -96 dBc/Hz. It utilizes an SMA connector for interface connections.

Feature Summary

• Low noise operation with specified phase noise characteristics
• Wide tuning voltage range from 0.5 V to 4.5 V
• Reliable construction for consistent RF signal generation

Applications

• RF signal generation in communication systems
• Microwave circuit design applications
• Test and measurement equipment

Procurement Notes

Verify the specific part number PE1V31023 against official Pasternack documentation to ensure accuracy. Confirm that the SMA interface and DC tuning requirements align with system specifications. Check for any updated datasheets or revision notes prior to ordering to guarantee component compatibility.

Selection Notes

Select this component when a stable VCO is required for the 1.7 to 1.85 GHz band. Ensure the system can provide the necessary 0.5 V to 4.5 V control voltage. Consider the -96 dBc/Hz phase noise limit relative to application sensitivity requirements before finalizing the design choice.

Part Context

This model belongs to Pasternack's portfolio of microwave and RF components. It serves as a specialized oscillator solution for engineers requiring precise frequency control within the L-band spectrum. The product line focuses on providing reliable passive and active components for professional RF applications.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Verify compatibility with existing circuit designs if considering alternative VCOs, as frequency ranges and phase noise profiles may differ significantly between manufacturers.
