Product Detailed Parameters
- Description：Voltage Controlled Oscillator, 2
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：2.3 ~ 2.45GHz
- Frequency - Center：2.375GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0.5 V ~ 4.5 V
- 2nd Harmonic, Typ (dBc)：-15
- Icc Max：30mA (Typ)
- Pushing (MHz/V)：50
- Power (dBm)：3 ±2
- Phase Noise Typ (dBc/Hz)：-101
- Operating Temperature：-40°C ~ 85°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
- Height：0.568" (14.43mm)
Download product information
Overview

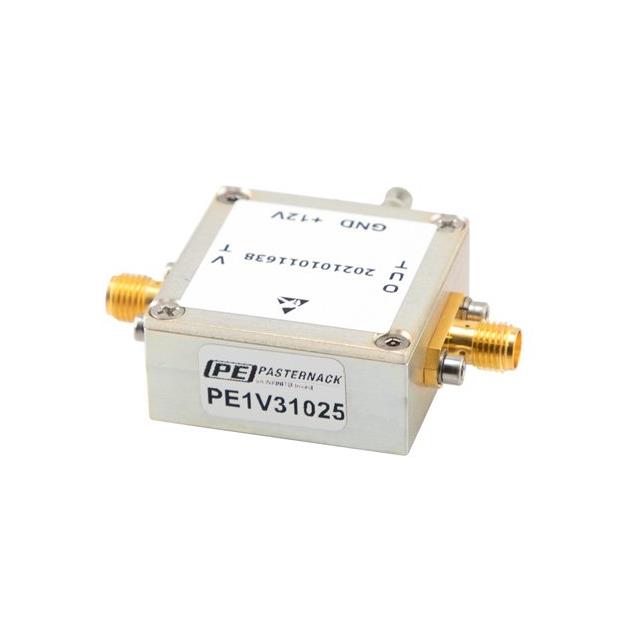

The PE1V31025 is a voltage-controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 2300 MHz to 2450 MHz. The device delivers an output power of +3 dBm and achieves a phase noise performance of -101 dBc/Hz. It utilizes SMA connectors for interface connections. The tuning range is specified from 0.5 V to 4.5 V, allowing for precise frequency control via the applied voltage.
Feature Summary
- Provides stable voltage-controlled oscillation across the 2.3 GHz to 2.45 GHz band
- Delivers consistent output power with low phase noise characteristics
- Features SMA connector interfaces for straightforward integration
Applications
- Wireless communication systems requiring local oscillators
- Test and measurement equipment signal generation
- RF receiver front-end frequency synthesis
Procurement Notes
Verify component authenticity through authorized channels. Confirm RoHS compliance status as indicated in official documentation. Ensure compatibility with required tuning voltage ranges before integration. Check datasheet specifications for environmental operating limits. Validate connector type matches system requirements.
Selection Notes
Select this model when a 2.3 GHz to 2.45 MHz frequency range is required. Consider the +3 dBm output power level for system gain budgets. Evaluate the -101 dBc/Hz phase noise against system sensitivity requirements. Verify that the 0.5 V to 4.5 V tuning range aligns with available control voltages.
Part Context
This component belongs to Pasternack's voltage-controlled oscillator series. The product line covers various frequency bands from 10 MHz to 11 GHz. Similar models include PE1V31010, PE1V31011, and PE1V31012, which offer different frequency ranges and phase noise specifications while maintaining similar interface standards.
Replacement Considerations
PE1V31011 offers a 1.2 GHz to 1.8 GHz range. PE1V31012 provides a 1.6 GHz to 3.2 GHz range. PE1V31013 covers 3 GHz to 3.5 GHz. These alternatives share similar package types but differ significantly in operating frequencies.
