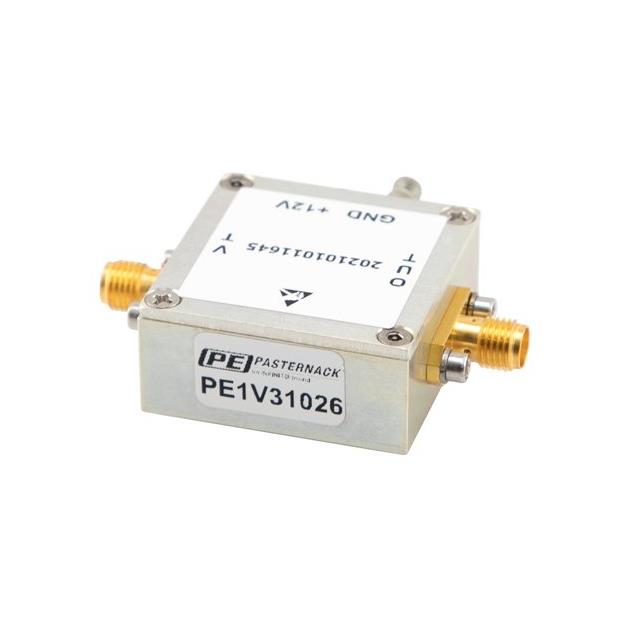

PE1V31026

$595.40

Description：Voltage Controlled Oscillator, 2
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:9fee2c6bc164 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Voltage Controlled Oscillator, 2
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：2.4 ~ 2.8GHz
Frequency - Center：2.6GHz
Voltage - Supply：12V
Tuning Voltage (VDC)：1 V ~ 11 V
2nd Harmonic, Typ (dBc)：-10
Icc Max：25mA (Typ)
Pushing (MHz/V)：80
Power (dBm)：9 -3, +4
Phase Noise Typ (dBc/Hz)：-92
Operating Temperature：-40°C ~ 85°C
Package / Case：Module, SMA Connectors
Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
Height：0.568" (14.43mm)

Download product information

PE1V31026

Overview

The Pasternack PE1V31026 is a Voltage Controlled Oscillator (VCO) operating within the 2400 MHz to 2800 MHz frequency range. It delivers an output power of +9 dBm and achieves a phase noise specification of -92 dBc/Hz. The device utilizes an SMA interface and supports a tuning voltage range from 1V to 11V. This component is designed for applications requiring stable RF signal generation with precise frequency control via voltage adjustment.

Feature Summary

Provides stable RF signal generation across a defined microwave frequency band
Enables precise frequency control through a wide analog voltage tuning range
Delivers consistent output power with low phase noise characteristics

Applications

Wireless communication systems requiring local oscillators
Test and measurement equipment needing stable reference signals
Radar systems utilizing frequency synthesis techniques

Procurement Notes

Verify the specific datasheet version for the PE1V31026 to confirm current manufacturing status and electrical tolerances. Ensure that the system design accommodates the required 1V to 11V tuning voltage supply. Confirm mechanical compatibility with the SMA connector interface before integration into the final assembly.

Selection Notes

Select this VCO when a center frequency near 2.6 GHz is required with moderate output power. Consider the -92 dBc/Hz phase noise performance against system sensitivity requirements. Evaluate the SMA interface suitability for the target PCB layout and ensure the tuning voltage range aligns with available control circuitry capabilities.

Part Context

This component belongs to the Pasternack Voltage Controlled Oscillators series, which offers various frequency ranges and interface options. The PE1V31026 specifically targets the 2.4 GHz to 2.8 GHz band, providing a solution for designers needing reliable frequency synthesis without external complex tuning networks.
