PE1V31027

Overview

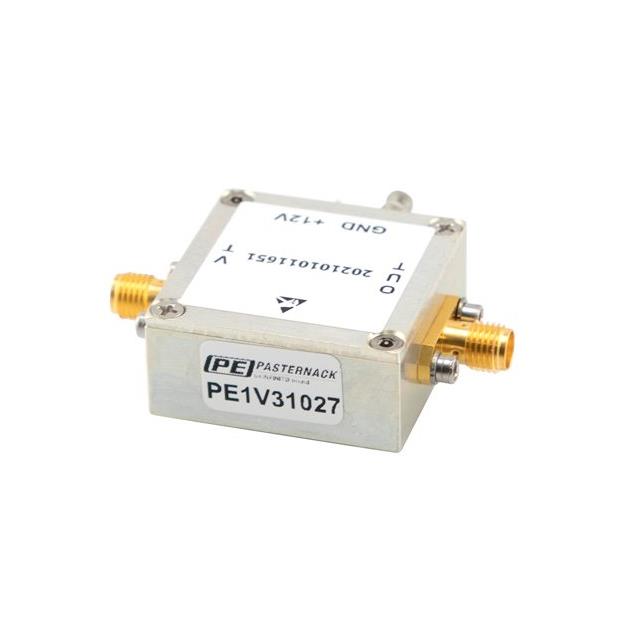

The PE1V31027 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack, designed for microwave applications. It operates within a frequency range of 3300 MHz to 3400 MHz. The device delivers an output power of +5 dBm with a typical phase noise of -88 dBc/Hz. Tuning is achieved via a voltage range of 0.5V to 4.5V. The unit features SMA connectors and is housed in a module package. It supports an operating temperature range from -40°C to 85°C.

Feature Summary

• Provides stable oscillation across the 3300 MHz to 3400 MHz band
• Features low phase noise characteristics for signal integrity
• Utilizes SMA interface connectors for integration
• Operates reliably across extended industrial temperature ranges

Applications

• Microwave communication systems
• RF test and measurement equipment
• Wireless infrastructure components

Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet revisions match specific lot codes. Ensure environmental ratings align with deployment conditions. Validate connector specifications against system requirements. Review compliance documentation for regulatory adherence.

Selection Notes

Evaluate tuning voltage compatibility with control circuitry. Assess phase noise performance relative to system sensitivity. Consider thermal management capabilities within the specified temperature range. Verify output power levels meet downstream stage requirements. Check physical dimensions for enclosure fitment.

Part Context

This VCO belongs to Pasternack's Voltage Control Oscillators series. It serves as a frequency generation source for RF circuits. The product line includes various models covering different frequency bands. Each unit maintains consistent manufacturing standards for reliability.

Replacement Considerations

Cross-reference with PE1V31026 for lower frequency needs. Compare electrical parameters before substitution. Ensure pinout and connector types remain compatible.
