PE1V31029

Overview

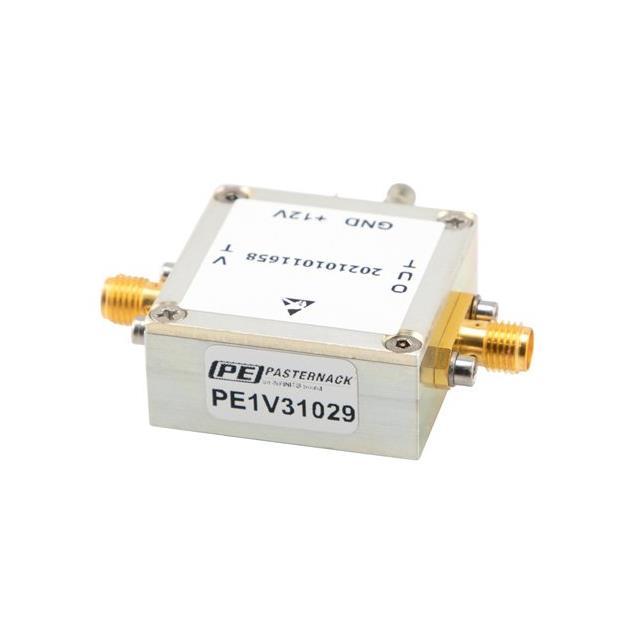

The PE1V31029 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 5220 MHz to 5420 MHz. The device delivers an output power of -1 dBm and exhibits a phase noise specification of -83 dBc/Hz. Tuning is achieved via a voltage input ranging from 0.5 V to 4.5 V. The component utilizes an SMA interface connector for signal transmission.

Feature Summary

• Voltage-controlled operation with specified tuning range
• Integrated phase noise performance at -83 dBc/Hz
• SMA connector interface for RF signal output

Applications

• RF signal generation circuits
• Communication system local oscillators
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version provided by Pasternack or authorized distributors to confirm current manufacturing status and detailed electrical characteristics. Ensure that the SMA connector type matches the system requirements. Check for any recent updates to the tuning voltage specifications or phase noise metrics before final integration into the design.

Selection Notes

Select this component when a stable VCO is required in the 5.2 GHz to 5.4 GHz band. Consider the -1 dBm output power level against system gain requirements. Evaluate the 0.5 V to 4.5V tuning range compatibility with available control voltages. Compare phase noise performance against other options if low-noise applications are critical.

Part Context

This part belongs to the Pasternack Voltage Control Oscillators series. It is categorized under Oscillators within the manufacturer's portfolio. The product is identified as a new item from the manufacturer, indicating it is part of their current active lineup for microwave and RF components.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Pasternack directly for potential alternatives or cross-reference options based on specific frequency and performance requirements.
