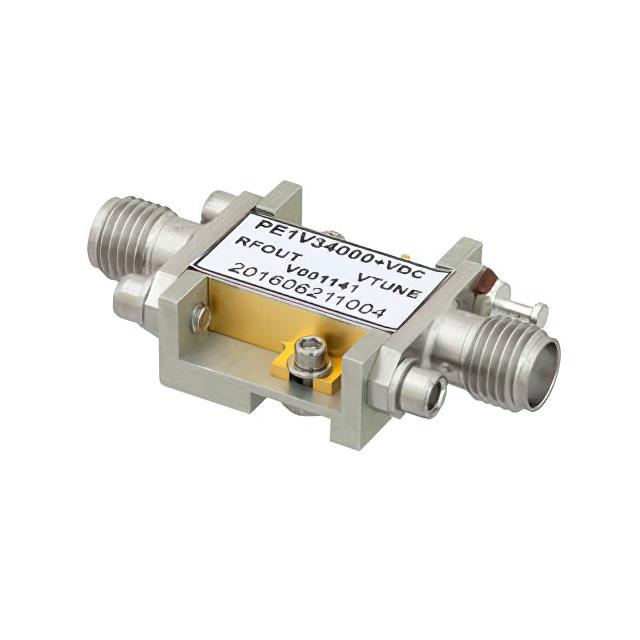

PE1V34000

$6,636.24

Description：Voltage Controlled Oscillator (V
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:f6589af799d2 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Voltage Controlled Oscillator (V
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：4 ~ 8GHz
Frequency - Center：6GHz
Voltage - Supply：12V
Tuning Voltage (VDC)：0 V ~ 18 V
2nd Harmonic, Typ (dBc)：-10
Icc Max：195mA (Typ)
Pushing (MHz/V)：0.2
Power (dBm)：3月20日
Phase Noise Typ (dBc/Hz)：-75
Operating Temperature：-40°C ~ 85°C
Package / Case：Module, SMA Connectors
Size / Dimension：1.390" L x 0.700" W (35.31mm x 17.78mm)
Height：0.291" (7.38mm)

Download product information

PE1V34000

Overview

The PE1V34000 is a Voltage Controlled Oscillator (VCO) manufactured by Pasternack Enterprises, Inc. It operates within a frequency range of 4 GHz to 8 GHz. The device features a phase noise specification of -95 dBc/Hz. It is available in Hi-REL Hermetic and SMA package configurations. This component is designed for high-reliability applications requiring stable microwave signal generation across the specified bandwidth.

Feature Summary

Voltage controlled operation for frequency tuning
High reliability hermetic construction option
SMA interface connectivity

Applications

Microwave communication systems
Test and measurement equipment
Radar systems

Procurement Notes

Verify the specific package configuration required, as the PE1V34000 is offered in both Hi-REL Hermetic and SMA variants. Confirm that the voltage control characteristics align with system requirements. Ensure compatibility with existing RF infrastructure before procurement. Request official datasheets to validate performance metrics against application needs.

Selection Notes

Select this VCO when a wide tuning range from 4 GHz to 8 GHz is necessary. Consider the Hi-REL Hermetic version for harsh environments or high-reliability standards. Evaluate phase noise requirements, as the unit specifies -95 dBc/Hz. Compare against other Pasternack VCOs if different frequency bands are needed.

Part Context

This part belongs to Pasternack's portfolio of Voltage Controlled Oscillators. Similar models include the PE1V31012 covering 1.6 GHz to 3.2 GHz and the PE1V31013 covering 3 GHz to 3.5 GHz. These components share common design principles but differ in operating frequency ranges and specific phase noise performances tailored to distinct microwave applications.

Replacement Considerations

No direct public substitute part numbers are confirmed for the PE1V34000. Users should consult Pasternack technical support for equivalent alternatives if this specific model is unavailable. Cross-reference frequency and phase noise specs carefully when considering generic replacements.
