Product Detailed Parameters
- Description：Voltage Controlled Oscillator (V
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：8 ~ 12.5GHz
- Frequency - Center：10.25GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0 V ~ 13 V
- 2nd Harmonic, Typ (dBc)：-20
- Icc Max：195mA (Typ)
- Pushing (MHz/V)：0.2
- Power (dBm)：21 ±3
- Phase Noise Typ (dBc/Hz)：-59
- Operating Temperature：-40°C ~ 85°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.640" L x 0.700" W (16.26mm x 17.78mm)
- Height：0.291" (7.38mm)
Download product information
Overview

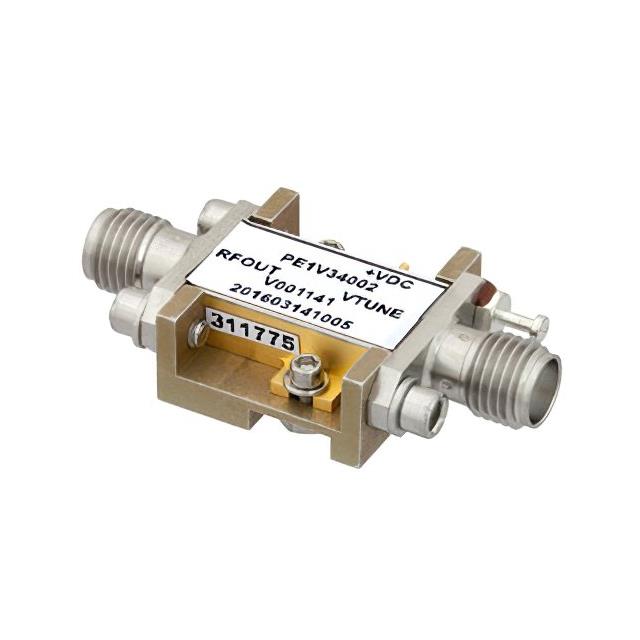

The Pasternack PE1V34002 is a high-performance Voltage Controlled Oscillator (VCO) designed for RF and microwave applications. It operates within a frequency range of 8 GHz to 12.5 GHz. The component delivers an output power of +5 dBm. It features a phase noise specification of -88 dBc/Hz. The device supports a tuning voltage range from 0.5 V to 4.5 V. It utilizes an SMA interface connector. The unit weighs approximately 45.359 grams.
Feature Summary
- Generates stable RF signals across the 8 GHz to 12.5 GHz spectrum
- Provides consistent +5 dBm output power capability
- Maintains low phase noise performance at -88 dBc/Hz
- Operates with a standard 0.5 V to 4.5 V tuning voltage range
Applications
- RF signal generation in communication systems
- Microwave test and measurement equipment
- Local oscillator sources in receiver architectures
- Frequency synthesis modules
Procurement Notes
Verify the specific datasheet version for the PE1V34002 to confirm current electrical tolerances and pinout configurations. Ensure that the supply voltage and tuning range requirements align with the system design before integration. Check for any recent manufacturing updates or compliance certifications relevant to the procurement region.
Selection Notes
Select this VCO when a wide frequency coverage between 8 GHz and 12.5 GHz is required. Consider the -88 dBc/Hz phase noise figure for applications demanding spectral purity. Confirm that the SMA connector type matches the PCB layout or cable assembly constraints. Evaluate the thermal environment to ensure stable operation within the specified tuning voltage limits.
Part Context
This component belongs to the Pasternack family of high-performance Voltage Controlled Oscillators. It is categorized under RF oscillators and microwave components. The part number indicates its specific frequency band and performance tier within the manufacturer's portfolio of RF solutions.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information or compatible alternatives with similar frequency and phase noise specifications.
