PE2V001

$106.65

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:2efd1fa252ef Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：200 ~ 400MHz
Frequency - Center：300MHz
Voltage - Supply：3V
Tuning Voltage (VDC)：0 V ~ 5 V
2nd Harmonic, Typ (dBc)：-14
Icc Max：10mA
Pushing (MHz/V)：4
Power (dBm)：6 -1, +3
Phase Noise Typ (dBc/Hz)：-95
Operating Temperature：-40°C ~ 85°C
Package / Case：8-SMD Module
Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
Height：0.075" (1.90mm)

Download product information

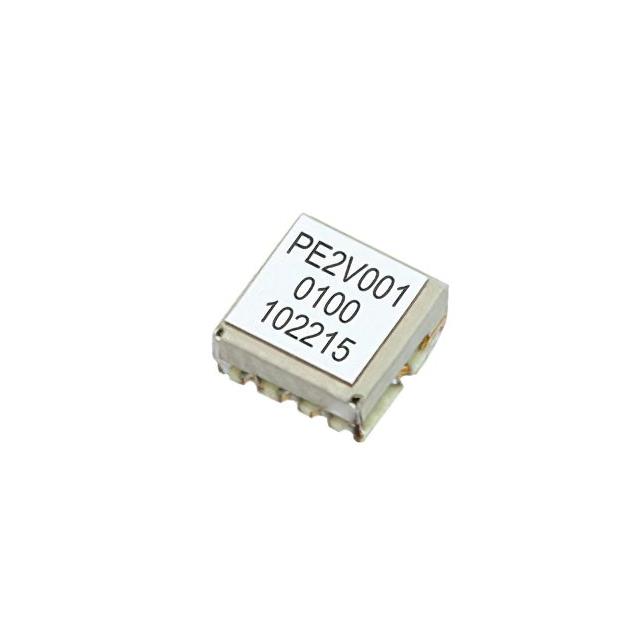

PE2V001

Overview

The Pasternack PE2V001 is a Surface Mount (SMT) Voltage Controlled Oscillator (VCO). It operates within a frequency range of 50 MHz to 100 MHz. The device features a phase noise specification of -115 dBc/Hz. It utilizes a compact 0.5-inch package design suitable for surface mount integration.

Feature Summary

Surface mount voltage controlled oscillator configuration
Frequency tuning range from 50 MHz to 100 MHz
Phase noise performance of -115 dBc/Hz

Applications

RF signal generation circuits
Communication system local oscillators
Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement, as availability may be restricted. Confirm that the SMT package dimensions match the target PCB footprint. Ensure the operating temperature range aligns with the application environment requirements.

Selection Notes

Select this component when a low-phase-noise VCO is required for the 50-100 MHz band. The SMT form factor supports automated assembly processes. Evaluate thermal management needs based on the power dissipation characteristics defined in the official electrical specifications.

Part Context

This part belongs to the Voltage Control Oscillators (VCO) subcategory under RF Semiconductors and Devices. It serves as a frequency source component within Pasternack's broader portfolio of active RF devices designed for precision signal generation applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other SMT VCOs only if they meet identical frequency and phase noise specifications.
