PE2V004

Overview

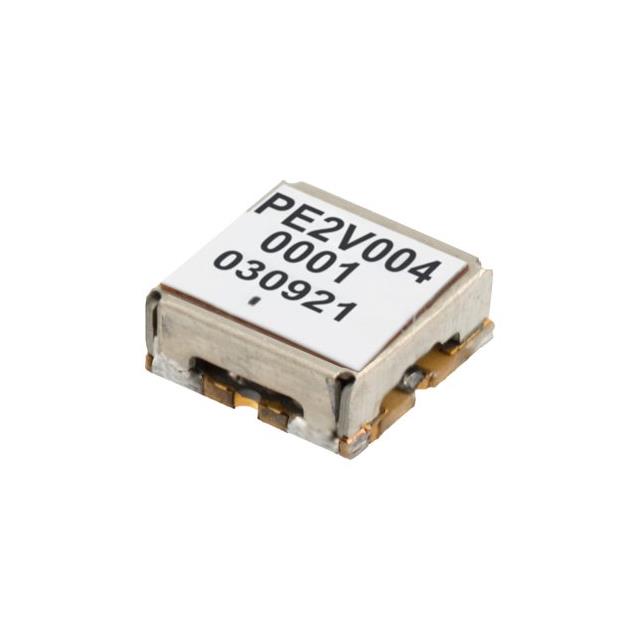

The PE2V004 is a surface mount voltage controlled oscillator (VCO) manufactured by Pasternack Enterprises. It operates within a frequency range of 800 MHz to 1.6 GHz, utilizing a tuning voltage span from 0 V to 18 V. The device delivers an output power level of +2 dBm and exhibits a typical second harmonic suppression of -17 dBc. Designed for compact integration, it employs a surface mount configuration suitable for RF and microwave circuit applications requiring precise frequency control.

Feature Summary

• Surface mount voltage controlled oscillator design
• Frequency tuning via 0 V to 18 V control voltage
• Operational frequency range from 800 MHz to 1.6 GHz

Applications

• RF signal generation circuits
• Microwave communication systems
• Frequency synthesis modules

Procurement Notes

Verify the specific datasheet version and mechanical footprint dimensions prior to procurement. Confirm that the required tuning voltage range and output power specifications align with the target system requirements. Ensure compatibility with surface mount assembly processes and check for any recent updates to the component's electrical characteristics or compliance certifications.

Selection Notes

Select the PE2V004 when a compact surface mount solution is required for generating frequencies between 800 MHz and 1.6 GHz. Consider its +2 dBm output power and -17 dBc second harmonic performance for applications where moderate signal strength and spectral purity are necessary. Evaluate the 0 V to 18 V tuning range against available control voltages in the host system.

Part Context

This component belongs to the Pasternack voltage controlled oscillator family, designed for RF and microwave environments. It provides a fixed-frequency tuning capability through an external voltage input, enabling frequency agility within its specified operational band without requiring mechanical adjustment.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
