PE2V005

$41.56

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:db1e2d81b3d1 Category: VCOs (Voltage Controlled Oscillators) Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Surface Mount (SMT) Voltage Cont
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency Range：1 ~ 2GHz
Frequency - Center：1.5GHz
Voltage - Supply：12V
Tuning Voltage (VDC)：0 V ~ 20 V
2nd Harmonic, Typ (dBc)：-7
Icc Max：25mA
Pushing (MHz/V)：2
Power (dBm)：10 -1, +2
Phase Noise Typ (dBc/Hz)：-90
Operating Temperature：-40°C ~ 85°C
Package / Case：8-SMD Module
Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
Height：0.075" (1.90mm)

Download product information

PE2V005

Overview

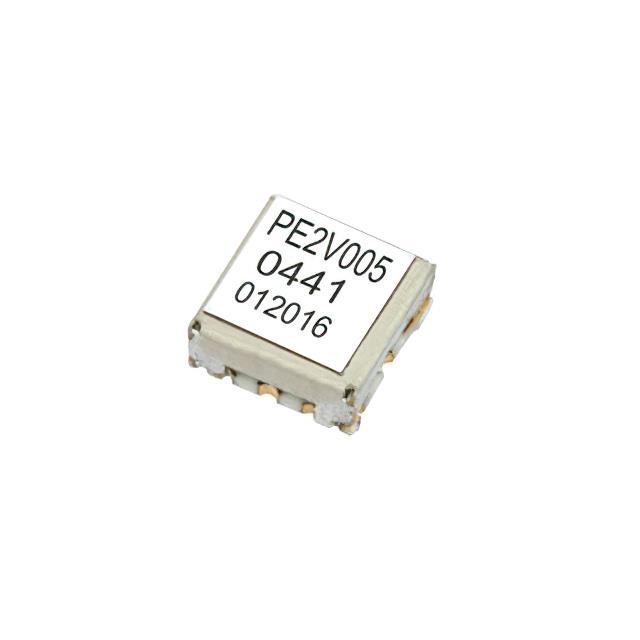

The PE2V005 is a surface mount voltage controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 1 GHz to 2 GHz. The device features a phase noise specification of -90 dBc/Hz. It utilizes a compact package with dimensions of 0.175 inches.

Feature Summary

Surface mount construction for automated assembly integration
Voltage controlled operation for frequency tuning
Designed for high-frequency signal generation applications

Applications

Wireless communication systems
Test and measurement equipment
Signal generation modules

Procurement Notes

Verify the specific datasheet requirements for the PE2V005 before procurement. Confirm that the surface mount package dimensions and pin configuration match the target PCB layout. Ensure that the operating voltage and control line specifications align with the system design constraints to guarantee proper functionality.

Selection Notes

Select the PE2V005 when a surface mount VCO is required for the 1 GHz to 2 GHz range. Consider the -90 dBc/Hz phase noise performance relative to system sensitivity requirements. Evaluate the 0.175-inch package size against available board space constraints compared to alternative through-hole or larger SMT options.

Part Context

This component belongs to Pasternack's portfolio of RF signal conditioning and generation devices. As a Voltage Controlled Oscillator, it serves as a core frequency source in RF circuits. It complements other Pasternack products such as power dividers, adapters, and cable assemblies in complete RF system designs.
