Product Detailed Parameters
- Description：Surface Mount (SMT) Voltage Cont
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency Range：2 ~ 2.75GHz
- Frequency - Center：2.375GHz
- Voltage - Supply：11V
- Tuning Voltage (VDC)：0 V ~ 10 V
- 2nd Harmonic, Typ (dBc)：-17
- Icc Max：21mA
- Pushing (MHz/V)：6
- Power (dBm)：11 ±1
- Phase Noise Typ (dBc/Hz)：-86
- Operating Temperature：-40°C ~ 85°C
- Package / Case：8-SMD Module
- Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
- Height：0.075" (1.90mm)
Download product information
Overview

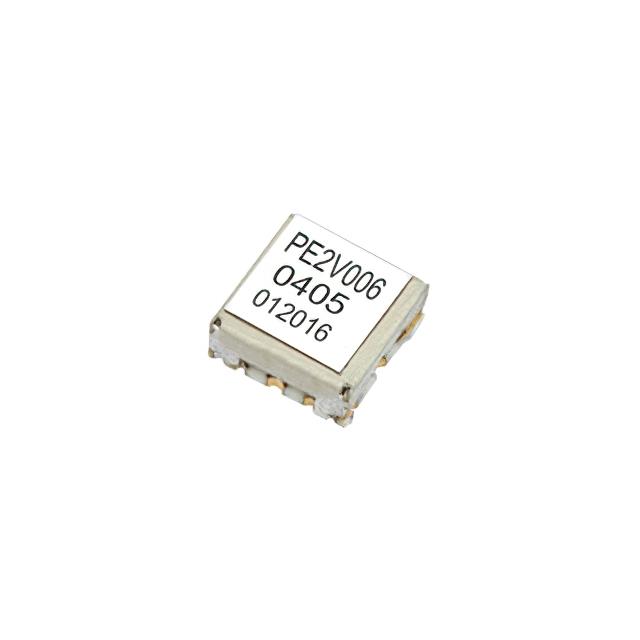

The PE2V006 is a surface-mount voltage-controlled oscillator (VCO) manufactured by Pasternack. It operates within a frequency range of 2 GHz to 2.75 GHz, featuring a center frequency of 2.375 GHz. The device utilizes a control voltage input spanning 0 V to 10 V to adjust the output frequency. It delivers an output power of 11 ±1 dBm and exhibits a typical phase noise of -86 dBc/Hz. Harmonic suppression includes a typical second harmonic level of -17 dBc. The component is housed in a compact 0.175-inch package designed for integration into RF systems.
Feature Summary
- Surface-mount construction for automated assembly
- Voltage-controlled frequency tuning via 0-10 V input
- Integrated harmonic suppression capabilities
Applications
- Wireless communication transceivers
- Test and measurement instrumentation
- RF signal generation modules
Procurement Notes
Verify that the specific order matches the PE2V006 designation to ensure correct frequency range and package dimensions. Confirm that the required control voltage profile aligns with the 0 V to 10 V specification. Ensure handling procedures account for the surface-mount nature of the component to prevent mechanical damage during installation.
Selection Notes
Select this component when a fixed-frequency-range VCO with surface-mount compatibility is required. The 2 GHz to 2.75 GHz range suits applications needing stable microwave signal generation. Consider the 11 dBm output power and -86 dBc/Hz phase noise for system sensitivity requirements. Evaluate the 0.175-inch footprint against available PCB space constraints.
Part Context
Pasternack specializes in radio frequency, microwave, and millimeter-wave components. The PE2V006 belongs to their portfolio of active RF devices, specifically voltage-controlled oscillators. These components are engineered for precision signal generation in high-frequency electronic systems.
Replacement Considerations
No public substitute part numbers are documented for the PE2V006. Functional equivalents require matching frequency range, output power, and package type.
FAQ
What is the operating frequency range?
The PE2V006 operates from 2 GHz to 2.75 GHz.
What is the control voltage range?
The device requires a control voltage between 0 V and 10 V.
